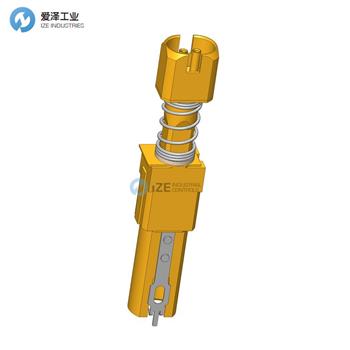

INGUN探針HFS802314051A8042HMTD技術參數

產品類別：HFS無線頻率測試探針

系列：HFS-802

子系列：HFS-802

網格尺寸：8 mm

被測裝置 / 接觸器：H-MTD?（Rosenberger）、Ve-NET?（Amphenol）

安裝方式：插件式

DUT接口性別：M型信號導體公頭 / 插針

浮動安裝：是

非旋轉：是

連續推桿：是

兼容裝配接口：HMTD

兼容裝配接口性別：F型信號導體母頭 / 插座

KS子系列：KS-802 HMTD，壓入式版本

最小溫度：-40°C

最大溫度：+80°C

符合RoHS：是（RoHS-3;6c）

外導體數據

導體端頭樣式：16針定位，適用于插頭內部

導體端頭直徑：7.7 mm

工作行程中整個外導體彈簧力：6 N

外導體工作行程：4 mm

最大行程：5 mm

可交換外導體：否

最大載流量：10 A

內導體數據

導體端頭樣式：14點狀冠形，具有自清潔功能

端頭直徑：0.51 mm

端頭材質：銅鈹合金（CuBe）

表面處理：鍍金

內導體數量：2（差分對）

可交換內導體：否

內導體工作行程：2.2 mm

每個內導體彈簧力：1 N

最大內導體行程：2.8 mm

最大載流量：2 A

電氣參數

頻率范圍：最高6 GHz

阻抗：100歐姆

機械參數

工作行程總彈簧力：8 N

總長度：45.3 mm

套筒直徑：8 mm

不含插座的安裝高度：18.8 mm

General data

Product group :HFS radio-frequency test probes

Series :HFS-802

Sub-series :HFS-802

Grid :8 mm

DUT / contact :H-MTD ? (Rosenberger) , Ve-NET ?(Amphenol),

Installation type :Plug-in

DUT interface gender :M signal conductor male / pin

Floating mount :Yes

Non-rotating :Yes

Continuous plunger :Yes

Interface of compatible assembly :HMTD

Compatible assembly interface gender :F signal conductor female / socket

KS sub-series :KS-802 HMTD, press-in version

Min. temperature :- 40 °C

Max. temperature :+ 80 °C

RoHS-compliant :RoHS-3;6c

Outer conductor data

Outer conductor tip style :42 centring for inner side of plug connector

Outer conductor tip style diameter :7.7 mm

Spring force of entire outer conductor at working stroke :6 N

Outer conductor working stroke :4 mm

Outer conductor maximum stroke :5 mm

Exchangeable outer conductor :No

Outer conductor max. current load capacity :10 A

Inner conductor data

Inner conductor tip style :14 4-point crown, self-cleaning

Inner conductor tip style diameter :0.51 mm

Inner conductor tip style material :3 CuBe

Inner conductor tip style surface :A gold

Number of inner conductors :2 1 differential pair

Exchangeable inner conductor :No

Inner conductor working stroke :2.2 mm

Spring force of each inner conductor at working stroke :1 N

Inner conductor maximum stroke :2.8 mm

Inner conductor max. current load capacity :2 A

Electrical data

Frequency range up to :6 GHz

Impedance :100 Ohm

Mechanical data

Total spring force at working stroke :8 N

Total length :45.3 mm

Barrel diameter :8 mm

Installation height without receptacle :18.8 mm
