BECKHOFF接口模塊EK1110技術參數
Technical data | EK1110 |
Task within EtherCAT system | conversion of the E-bus signals to 100BASE-TX Ethernet for extension of the EtherCAT network |
Data transfer medium | Ethernet/EtherCAT cable (min. Cat.5), shielded |
Distance between stations | 100 m (100BASE-TX) |
Protocol | any EtherCAT protocol |
Delay | approx. 1 μs |
Data transfer rates | 100 Mbit/s |
Configuration | not required |
Bus interface | 1 x RJ45 |
Power supply | from E-bus |
Current consumption E-bus | typ. 130 mA |
Electrical isolation | 500 V (supply voltage/Ethernet) |
Weight | approx. 50 g |
Operating temperature | -25…+60°C |
Storage temperature | -40…+85°C |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Relative humidity | 95%, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
Protect. rating/installation pos. | IP20/variable |
Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV GL |
Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc |
BECKHOFF接口模塊EK1110產品介紹

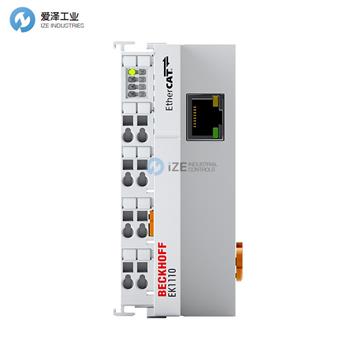

EK1110 EtherCAT擴展器安裝在EtherCAT端子段末端或CX系列嵌入式PC的末端，提供以線性拓?fù)浞绞綌U(kuò)展EtherCAT網絡的選項。
主要特點：
連接技術：1個RJ45插座
連接距離：最高可達100米
用于線性拓?fù)鋽U(kuò)展EtherCAT網絡
EK1110配備一個RJ45插座，可連接帶RJ45接口的以太網電纜，連接到另一個EtherCAT段或單個EtherCAT設備。E-bus信號在連續過程中被轉換為100BASE-TX以太網信號表示。EK1110的電子設備由E-bus供電，無需任何參數配置或設置。
The EK1110 EtherCAT extension is placed at the end of an EtherCAT Terminal segment or an Embedded PC from the CX series and offers the option of extending the EtherCAT network in the form of a line topology.
Special features:
Connection technology: 1 x RJ45 socket
Connection lengths: up to 100 m
Extension of an EtherCAT network in line topology
The EK1110 has an RJ45 socket that enables connection of an Ethernet cable with RJ45 connector and establishes a connection to a further EtherCAT segment or to individual EtherCAT devices. The E-bus signals are converted to 100BASE-TX Ethernet signal representation in a continuous process. Power supply to the EK1110 electronics is via the E-bus. No parameterization or configuration is required.
