BECKHOFF接口模塊EK1100技術參數
Technical data | EK1100 |
Task within EtherCAT system | coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks |
Data transfer medium | Ethernet/EtherCAT cable (min. Cat.5), shielded |
Distance between stations | max. 100 m (100BASE-TX) |
Number of EtherCAT Terminals | up to 65,534 |
Protocol | EtherCAT |
Delay | approx. 1 μs |
Data transfer rates | 100 Mbit/s |
Bus interface | 2 x RJ45 |
Power supply | 24 V DC (-15%/+20%) |
Current consumption from US | 70 mA + (∑ E-bus current/4) |
Current consumption from UP | load |
Current supply E-bus | 2000 mA |
Power contacts | max. 24 V DC/max. 10 A |
Electrical isolation | 500 V (power contact/supply voltage/Ethernet) |
Operating temperature | -25…+60°C |
Storage temperature | -40…+85°C |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Relative humidity | 95%, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
Protect. rating/installation pos. | IP20/variable |
Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV GL, cFMus |
Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc |
BECKHOFF接口模塊EK1100產品介紹

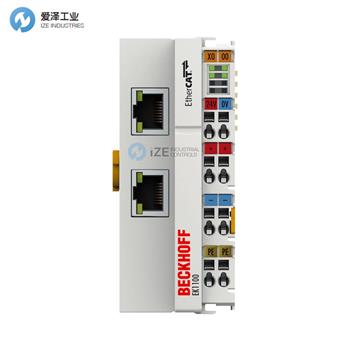

EK1100 EtherCAT耦合器是現場總線層EtherCAT協議與EtherCAT端子之間的連接設備。該耦合器將以太網（100BASE-TX）傳遞的電文轉換為E-bus信號表示。一個站點由一個耦合器和任意數量的EtherCAT端子組成，后者會自動檢測并在過程圖像中單獨顯示。
主要特點：
連接技術：2個RJ45插座
連接距離：可達100米
系統中EtherCAT端子的最大數量：高達65,535個
EK1100配備兩個RJ45插座。上方的以太網接口用于連接耦合器到網絡；下方的插座用于在同一段中可選連接其他EtherCAT設備。此外，還可使用EtherCAT連接器或擴展器擴展線性或星形拓撲結構。
系統和現場電源各為24V直流電，直接在耦合器上供電。連接的EtherCAT端子從供電電源獲得工作所需的電流。耦合器最多能提供5V、2A的電源。如果需要更大的電流，應結合使用諸如EL9410等電源模塊?，F(xiàn)場電源通過帶有最高10A容量的電源觸點，傳輸至各個I/O組件。
在EtherCAT網絡中，EK1100可以安裝在任何以太網信號傳輸段（100BASE-TX），但不包括直接在交換機處。EK9000和EK1000耦合器適用于在交換機處使用。
The EK1100 EtherCAT Coupler is the link between the EtherCAT protocol at fieldbus level and the EtherCAT Terminals. The coupler converts the passing telegrams from Ethernet 100BASE-TX to E-bus signal representation. A station consists of a coupler and any number of EtherCAT Terminals that are automatically detected and individually displayed in the process image.
Special features:
Connection technology: 2 x RJ45 socket
Connection lengths: up to 100 m
Number of EtherCAT Terminals in the overall system: up to 65,535
The EK1100 has two RJ45 sockets. The upper Ethernet interface is used to connect the coupler to the network; the lower socket serves for the optional connection of further EtherCAT devices in the same segment. In addition, an EtherCAT junction or an EtherCAT extension can be used for the extension or for setting up a line or star topology.
The system and field supply, each 24 V DC, is provided directly at the coupler. The attached EtherCAT Terminals are supplied with the current required for communication from the supplied system voltage. The coupler can supply a maximum of 5 V and 2 A. If higher current is required, power feed terminals such as the EL9410 have to be integrated. The field supply is forwarded to the individual I/O components via the power contacts with up to 10 A.
In the EtherCAT network, the EK1100 can be installed anywhere in the Ethernet signal transfer section (100BASE-TX) – except directly at the switch. The EK9000 and EK1000 couplers are suitable for use at the switch.
