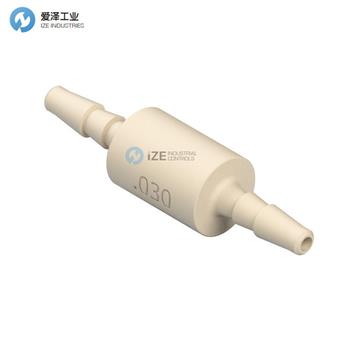

AIR LOGIC氣動控制閥F-2815-301-B80技術參數
規格參數
品牌：Air Logic
名義孔徑尺寸：0.030英寸
管內徑（ID）：1/16英寸
顏色：米色
連接類型：帶扣式
接觸潤濕材料：聚硫酮（PSU）
最大壓力：125 psi（8.6 bar）
典型管子夾持壓力：125 psi（8.6 bar）
名義流量系數（Cv）：0.0245
建議系統過濾：73 微米
安裝方式：卡入式（Push-In）
符合EU RoHS 2（指令2011/65/EU及修正案（EU）2015/863）：是
符合REACH（化學品注冊、評估、授權和限制）：是
特點：模塑成型
其他信息：
帶扣連接是一種簡潔、經過時間驗證且具有成本優勢的連接方式。管子的箍圈強度在扣合后能牢固固定在扣口上。Air Logic的第一個扣口無分模線，確保良好的密封性，額外的扣口則增強管子的固定力。帶扣連接無需潤滑劑或螺紋密封劑，連接只需將管子推到扣口上即可完成。直通端口一般適用于1/16英寸ID的軟管，也可以在帶有外部O形圈密封（不包含）的一體式設計中使用。
孔口在出廠時按標示方向測試和驗證。產品可以在任意方向使用，但按照標示方向操作會提高流量控制的精確度?？卓跒榉钦{(diào)節、不可篡改的流量限制元件，也稱為流量限制器、緩沖器、氣動電阻、流量減速器或流量阻尼器。其應用廣泛，適用于各種微型氣動或流體系統（如咖啡機、氣體分析儀、醫用床和打印系統）。
Specifications
Brands：Air Logic
Nominal Orifice Size：0.030 in
Tubing Inside Diameter (ID)：1/16 in
Color：Beige
Connection Type：Barbed
Wetted Material(s)：Polysulfone (PSU)
Maximum Pressure：125 psi 8.6 bar
Typical Tube Retention Pressure1：125 psi 8.6 bar
Nominal Flow Coefficient (Cv)：0.0245
Recommended System Filtration：73 μm
Installation Method：Push-In
EU RoHS 2 (Directive 2011/65/EU with amendment (EU) 2015/863)：Yes
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) Compliant：Yes
Features：Molded
Additional Information：
Barbed connections are a clean, time tested and cost efficient method of connection. The hoop strength of the tube holds around the barbed fitting. Air Logic's first barb is free of a parting line to create a good seal, additional barbs increase holding force for tube retention. Barbed connections are free of lubrication or thread sealant used in other styles of connection. Simply push the tube over the barb and the connection is complete. Straight ports are generally used with 1/16" ID tubing, but may also be used in a captured design with an external O-ring seal (not included).
Orifices are Factory tested in the direction marked on the product. The product will function in either direction, but using the product in the indicated direction will improve accuracy of the flow control. Orifices are non-adjustable and tamperproof method of flow control. Orifices are sometimes called Flow Restrictors, Snubbers, Pneumatic resistors, Flow reducers, Flow dampeners. Applications include all types of miniature, pneumatic, or fluidic systems (examples: coffee makers, gas analyzers, medical beds, and printing systems).
AIR LOGIC氣動控制閥介紹
模塑孔口是最簡單的流量控制方法，也是Air Logic最暢銷的產品系列之一。它們的工作原理基于流量限制，孔徑尺寸在零件編號中標明，并通過為每個孔徑尺寸分配的顏色編碼進行識別。除了孔徑大小之外，Air Logic還控制許多影響孔口整體限制的細小因素。這也是為什么Air Logic的孔口能夠在各種不同的市場中提供準確可靠的流量性能的原因。所有Air Logic的產品都在美國經過精密成型、組裝和測試，保證質量。
Molded orifices are the simplest method of flow control and are one of Air Logic's best-selling product lines. They work on the principal of Flow Restriction with the orifice diameter being identified in the part number and by color codes assigned to each orifice size. In addition to orifice diameter, Air Logic controls many smaller factors that have an impact on the total restriction of the orifice. This is why Air Logic's orifices are trusted to provide accurate and reliable flow performance across a variety of different markets. All of the Air Logics products are precision molded, assembled and tested in America.
