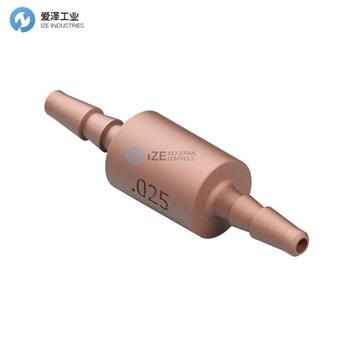

AIR LOGIC氣動控制閥F-2815-251-B80技術參數
規格參數
品牌：Air Logic
名義孔徑尺寸：0.025英寸
管內徑（ID）：1/16英寸
顏色：棕色
連接類型：帶扣式
接觸潤濕材料：聚硫酮（PSU）
最大壓力：125 psi（8.6 bar）
典型管子夾持壓力：125 psi（8.6 bar）
名義流量系數（Cv）：0.0179
建議系統過濾：73 微米
安裝方式：卡入式（Push-In）
符合EU RoHS 2（指令2011/65/EU及修正案（EU）2015/863）：是
符合REACH（化學品注冊、評估、授權和限制）：是
特點：模塑成型
其他信息：
帶扣連接是一種簡潔、經過時間驗證且具有成本效益的連接方式。管子的箍圈強度在扣合后能牢固固定在扣口上。Air Logic的第一個扣口無分模線，確保良好的密封性，額外的扣口則增強管子的固定力。帶扣連接無需潤滑劑或螺紋密封劑，連接只需將管子推到扣口上即可完成。直通端口一般適用于1/16英寸ID的軟管，但也可以在帶有外部O形圈密封（不包含）的一體式設計中使用。
孔口在出廠時按標示方向測試和驗證。產品可以在任意方向使用，但按照標示方向操作會提高流量控制的精確度?？卓跒榉钦{(diào)節、不可篡改的流量限制元件，也稱為流量限制器、緩沖器、氣動電阻、流量減速器或流量阻尼器。廣泛應用于各種微型氣動或流體系統（例如咖啡機、氣體分析儀、醫用床和打印系統）。
Specifications
Brands：Air Logic
Nominal Orifice Size：0.025 in
Tubing Inside Diameter (ID)：1/16 in
Color：Brown
Connection Type：Barbed
Wetted Material(s)：Polysulfone (PSU)
Maximum Pressure：125 psi 8.6 bar
Typical Tube Retention Pressure1：125 psi 8.6 bar
Nominal Flow Coefficient (Cv)：0.0179
Recommended System Filtration：73 μm
Installation Method：Push-In
EU RoHS 2 (Directive 2011/65/EU with amendment (EU) 2015/863)：Yes
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) Compliant：Yes
Features：Molded
Additional Information：
Barbed connections are a clean, time tested and cost efficient method of connection. The hoop strength of the tube holds around the barbed fitting. Air Logic's first barb is free of a parting line to create a good seal, additional barbs increase holding force for tube retention. Barbed connections are free of lubrication or thread sealant used in other styles of connection. Simply push the tube over the barb and the connection is complete. Straight ports are generally used with 1/16" ID tubing, but may also be used in a captured design with an external O-ring seal (not included).
Orifices are Factory tested in the direction marked on the product. The product will function in either direction, but using the product in the indicated direction will improve accuracy of the flow control. Orifices are non-adjustable and tamperproof method of flow control. Orifices are sometimes called Flow Restrictors, Snubbers, Pneumatic resistors, Flow reducers, Flow dampeners. Applications include all types of miniature, pneumatic, or fluidic systems (examples: coffee makers, gas analyzers, medical beds, and printing systems).
AIR LOGIC氣動控制閥介紹
模塑孔口是最簡單的流量控制方法，也是Air Logic最暢銷的產品系列之一。它們的工作原理基于流量限制，孔徑尺寸在零件編號中標明，并通過為每個孔徑尺寸分配的顏色編碼進行識別。除了孔徑大小之外，Air Logic還控制許多影響孔口整體限制的細小因素。這也是為什么Air Logic的孔口能夠在各種不同的市場中提供準確可靠的流量性能的原因。所有Air Logic的產品都在美國經過精密成型、組裝和測試，保證質量。
Molded orifices are the simplest method of flow control and are one of Air Logic's best-selling product lines. They work on the principal of Flow Restriction with the orifice diameter being identified in the part number and by color codes assigned to each orifice size. In addition to orifice diameter, Air Logic controls many smaller factors that have an impact on the total restriction of the orifice. This is why Air Logic's orifices are trusted to provide accurate and reliable flow performance across a variety of different markets. All of the Air Logics products are precision molded, assembled and tested in America.
AIR LOGIC氣動控制閥F2815系列其他常用型號：
AIR LOGIC F-2815-251-B80
AIR LOGIC F-2815-050-B80
AIR LOGIC F-2815-101-B80
AIR LOGIC F2815041
AIR LOGIC F2815041B80
AIR LOGIC F2815050
AIR LOGIC F2815050B80
AIR LOGIC F2815051
AIR LOGIC F2815051B80
AIR LOGIC F2815051PP
AIR LOGIC F2815071
AIR LOGIC F2815071B80
AIR LOGIC F2815101
AIR LOGIC F2815101B80
AIR LOGIC F2815121
AIR LOGIC F2815121B80
AIR LOGIC F2815141PC
AIR LOGIC F2815161
AIR LOGIC F2815161B80
AIR LOGIC F2815201
AIR LOGIC F2815201B80
AIR LOGIC F2815251
AIR LOGIC F2815251B80
AIR LOGIC F2815301
AIR LOGIC F2815301B80
AIR LOGIC F2815401
AIR LOGIC NEEDLE VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AIR LOGIC氣動控制閥F-2815-251-B80的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AIR LOGIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.aalatcr.cn.
