RAVIOLI滑環PRP系列技術參數
Main Performances | |
Housing | In thermoplastic insulating material |
Inside passage | 42 mm diameter through steel pipe for the passage of hoist cables, fluid cables and piston stems |
Positioning | In vertical axis with threaded pipe as illustrated here below |
Cable entry | Through 1/2” Gas cable entry on the lower and upper flange. |
Brushes | 20 A copper-graphite brushes, 30 A blade or copper-graphite and 50 A blade or copper-graphite |
Executions | From 6 to 36 rings 20 A from 4 to 12 rings 30 A and from 4 to 12 rings 50 A. Mixed executions with 4 rings 30 A and till 30 rings 20 A |
Armonized rules | CEI-EN 60947-1 CEI-EN 60529 |
Marking | CE |
Electrical Features | |
Nominal voltage | 660 V ac - dc |
Nominal current | Ith 20 A - 30 A |
Protection degree | IP 51 |
Max rotating speed | 30 revs / min |
Test voltage | 2,5 kV |
Operating temperature | - 20 °C ÷ + 60 °C |
Availability on demand | Mixed versions with 20 A / 30 A / 50 A rings |
RAVIOLI滑環PRP系列介紹
PRP 型 Ravioli 滑環采用高機械強度熱塑性材料制成的保護性絕緣外殼。其突出特點之一是其直徑 42 毫米的內孔完全開放，可容納液體、軸或金屬線的管道。
信號刷可選用刀片刷、銅石墨刷或銀石墨刷，規格范圍從 4 環到 36 環，電流為 20/30/50 A。PRP型 Ravioli 滑環兼具安全性、可靠性和多功能性，且價格極具競爭力。

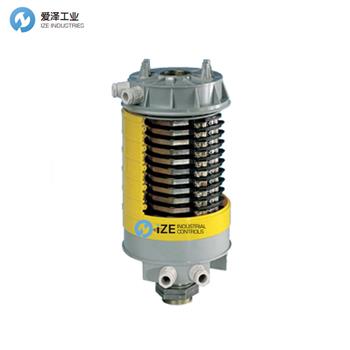

The PRP Ravioli slip ring features a protective, insulating housing made of mechanically strong thermoplastic material. A key feature is its 42 mm diameter inner bore, which is completely open to accommodate fluids, shafts, or wire conduits.
Signal brushes are available in blade, copper-graphite, or silver-graphite configurations, with sizes ranging from 4 to 36 rings and current ratings of 20/30/50 A. The PRP Ravioli slip ring combines safety, reliability, and versatility at a competitive price.
RAVIOLI滑環PRP系列其他常用型號：
RAVIOLI GPRPB27
RAVIOLI GPRPD8B901
RAVIOLI GPRPB3607
RAVIOLI GPRPB12
RAVIOLI GPRPB36
RAVIOLI GPRPB24
RAVIOLI GPRPB18
RAVIOLI GPRPB30
RAVIOLI GPRPC4L
RAVIOLI GPRPC10B21
