RAVIOLI滑環PRP系列技術參數
Main Performances | |
Housing | In thermoplastic insulating material |
Inside passage | 42 mm diameter through steel pipe for the passage of hoist cables, |
Positioning | In vertical axis with threaded pipe as illustrated here below |
Cable entry | Through 1/2” Gas cable entry on the lower and upper flange. |
Brushes | 20 A copper-graphite brushes, |
Executions | From 6 to 36 rings 20 A from 4 to 12 rings 30 A |
Armonized rules | CEI-EN 60947-1 CEI-EN 60529 2014/35/UE – 2014/30/UE –2006/42/CE Directives |
Marking | CE |
Electrical Features | |
Nominal voltage | 660 V ac - dc |
Nominal current | Ith 20 A - 30 A |
Protection degree | IP 51 |
Max rotating speed | 30 revs / min |
Test voltage | 2,5 kV |
Operating temperature | - 20 °C ÷ + 60 °C |
Availability on demand: | ? Mixed versions with 20 A / 30 A / 50 A rings |
RAVIOLI滑環PRP系列介紹
RAVIOLI滑環 PRP 型采用由高機械抗性熱塑性材料制成的保護性絕緣外殼實現。它的突出特點之一是內孔 D42mm，完全自由，允許液體、軸或金屬線管通過。
提供用于信號的刀片或銅石墨或銀石墨刷，執行范圍從 4 到 36 環 20/30/50 A。
Ravioli滑環 PRP型將安全性、可靠性和多功能性與極具競爭力的成本相結合。

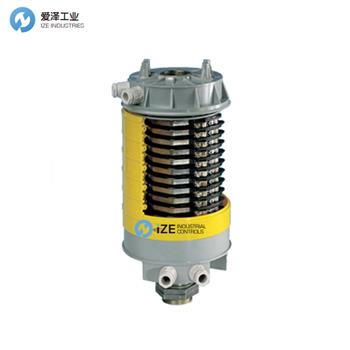

Ravioli Slip Ring Type PRP is realised with a protective insulating housing made of a high mechanical resistant thermoplastic material. One of its outstanding features is the internal hole D42mm which is totally free and allows the passage of tubes for liquids, shafts or metallic wires.
Blade or copper-graphite or silver-graphite brushes for signals are available, executions range from 4 to 36 rings 20/30/50 A.
Ravioli Slip Ring Type PRP combines safety, reliability and versatility to a highly competitive cost.

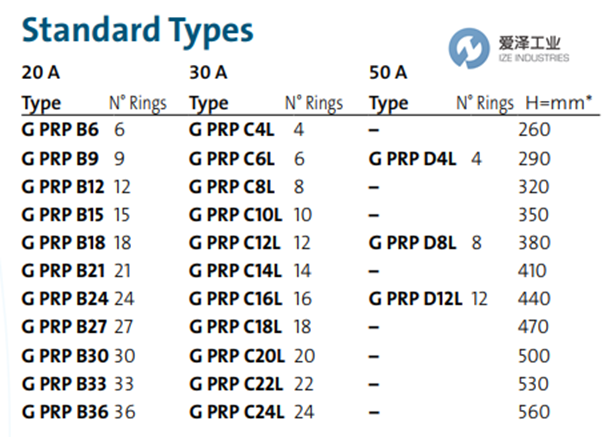

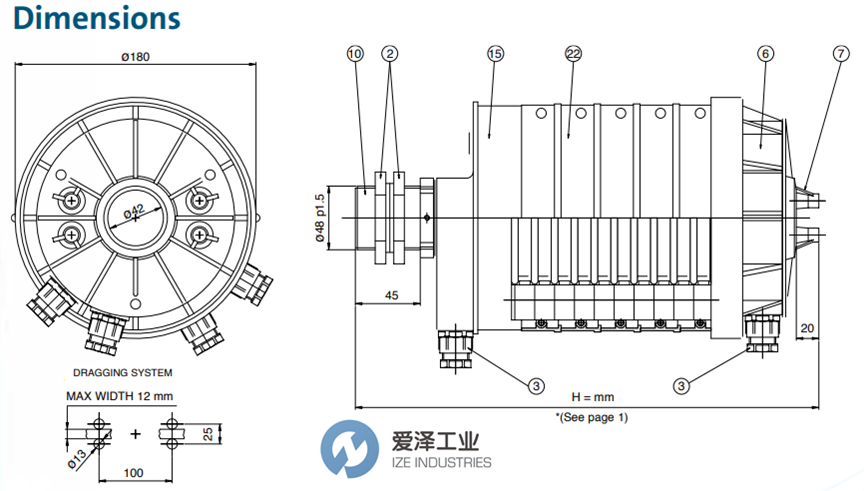

RAVIOLI滑環PRP系列技術尺寸及選型
RAVIOLI滑環PRP系列其他常用型號：
RAVIOLI GPRP B6
RAVIOLI GPRP B9
RAVIOLI GPRP B12
RAVIOLI GPRP B15
RAVIOLI GPRP B18
RAVIOLI GPRP B21
RAVIOLI GPRP B24
RAVIOLI GPRP B27
RAVIOLI GPRP B30
RAVIOLI GPRP B33
RAVIOLI GPRP B36
RAVIOLI GPRPD8B902
RAVIOLI Slip Ring NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RAVIOLI滑環GPRPD8B902的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RAVIOLI products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
RAVIOLI滑環PRP系列GPRPD8B902技術參數及選型
