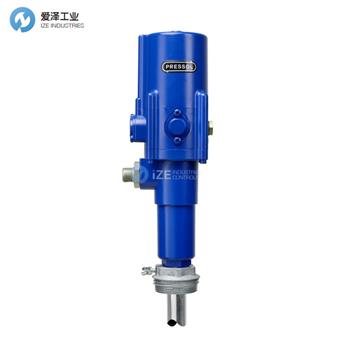

PRESSOL氣動泵19235技術參數
Technical data | |
Length of suction tube (mm) | 860 |
Pressure ratio | 3:1 |
Max. diameter (mm) | 130 |
Max. air pressure (bar) | 8 |
Min. air pressure (bar) | 2 |
Recommended air pressure (bar) | 6 |
Cylinder capacity engine (cm3) | 220 |
Cylinder capacity pump (cm3) | 70 |
Quantity of strokes at 8 bar at a free-flow (strokes/min) | 260 |
Pump capacity at 8 bar at a free-flow (l/min) | 22 |
Pump pressure at 8 bar air pressure (bar) | 24 |
Air consumption at 8 bar air pressure (l/min) | 470 |
Length of discharge pipe work | depends on size of installation. |
Max. suction heigth | 6 m, suction tube G 3/4'' |
Compressed air connection | G 1/4'' female |
Oil connection - suction side | G 3/4'' female |
Oil connection - delivery side | G 1/2'' male |
Connection container | G 2'' male, drum adapter |
Noise level idle running acc. to ISO 9614-2 at a distance of 2 m (db A) | 78 |
Noise level under load acc. to ISO 9614-2 at a distance of 2 m (db A) | 77 |
Viscosity of discharged liquid | oil up to SAE 90 |
Classical liquids to be discharged | engine, gear aud hydraulic oil |
Time duration for 1 complete container draining | 200 l oil in 9 minutes |
Lacquering | blue, Pantone 294 C |
Length of engine (mm) | 360 |
Weight of motor (kg) | 3,800 |
Weight (kg) | 5,65 |
PRESSOL氣動泵19235介紹
規格
氣動油泵3：1
吸管，G 3/4'' 外螺紋
特別說明
堅固耐用的泵，用途廣泛
適用于 200/220 升容器
排出發動機、齒輪和液壓油
非常適合直接連接到長達70米的管道。強烈建議使用溢流閥（(19 648)，20 bar，或 (19 506)，14 bar）。
可輕松與多個軟管卷盤組合
特殊的低維護和低磨損設計
最佳效率（空氣消耗量/輸送量/管道長度）
耐沖擊壓鑄
與空氣維護裝置（潤滑器和水分離器）一起使用（20 218 950）
Specification
Pneumatic oil pump 3:1
Suction tube, G 3/4'' male
Special notes
Rugged pump, versatile in use
For 200/220 l container
To discharge engine, gear and hydraulic oils
Ideal for direct connection to pipe lines up to 70 meters. We strongly recommend the use of an overflow valve ((19 648), 20 bar, or (19 506), 14 bar)
Can be easily combined with several hose reels
Special low-maintenance and low-wear design
Optimum efficiency (air consumption / delivery rate / pipe length)
impact resistant die casting
Use with air maintenance unit (lubricator and water separator) (20 218 950)
