規格描述

BAMO檢漏儀MAXIMAT LW CX系列規格描述

TECHNICAL FEATURES
Detection	Capacitive high-frequency sensor, fail-safe detector
Ambient temperature	-20 ... +60 °C
Operating pressure	Atmospheric; Limits: 0.8 to 1.1 bar
Housing head	PBT, fibre-glass reinforced
Protection	IP65 according to EN 60 529
Fittings	See the table ''ordering information''
Power supply	15 ... 27 V DC
Consumption	< 1 W
Materials	Mounting bracket or cap: PVC Probe: PVC for O.D. 25; PE for O.D. 40
Outputs	Potential-free Reed contact for low voltage (Normally closed, it opens when alarm occurs) Rated: Max. 50 V AC / DC, Max. 0.5 A, Max. 10 VA,convenient for operating with a coupling relay or PLC,signaling device TC4 / TC1 or CST unit. 2-wire alarm output reporting with transmitter MAXIMAT SHR C with transmitter MAXIMAT SHR C
Terminals	Screw terminals, cable max. 2.5 mm2
Additional function	Connection of an external test button (potential-free contact), for a complete diagnostic of the device integrity (connection loops, electronics).
Connection options	Alarm units: MAXIMAT TC1 / TC4 Coupling relay: CST Transmitter: MAXIMAT SHR C Automation with PLC

產品介紹

愛澤工業（ize-industries）并不是本網站所列所有產品的授權代理商或經銷商。本網站使用的所有產品名稱，商標，品牌等均屬于各自品牌廠家所有。本網站在產品或圖片描述中，出現具有這些名稱，商標，品牌等信息的產品僅用于識別目的，并非旨在表明任何與持有者的從屬及授權關系。

BAMO檢漏儀MAXIMAT LW CX系列介紹及選型

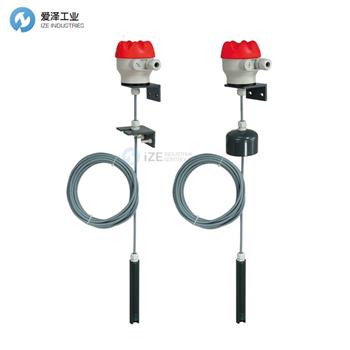

MAXIMAT LW CX

Compact leak detector

? All-plastic versions

? Integrated transmitter and connection for test button

? No moving parts

? For retention on storage tanks

? NPN / PNP interfaces

AGREEMENTS

- General building supervisory approval issued by DIBt: Z-65.40-496

- Certification of Product Approval by SVTI ASIT: KVU-Nr. 321.012.19

- Vlarem II (Corcon bvba) certificate: CP0914/3073-HCC001

- GOST-Clearance Certificate: 42 1300/ 9026 10 290 0

APPLICATION

Leak detection in accordance with the German Water Resources Act (WHG) for double-walled containers and retention in use for water-polluting, electrically conductive, non-flammable liquids.

DESCRIPTION

MAXIMAT LW CX compact leak detectors are used to detects leakage of containers, outside the container, leaks of water polluting liquids. When an electrically conductive liquid comes into contact with the detector probe, the integrated electronics respond by interrupting the continuous output signal. By interrupting the signal, audible and visual alarms are triggered.

MAXIMAT LW CX

緊湊型檢漏儀

?全塑料版本

?集成變送器和測試按鈕連接

?無活動部件

?用于固定在儲罐上

?NPN / PNP接口

協議書

-DIBt頒發的一般建筑監督批準：Z-65.40-496

-SVTI ASIT的產品批準證書：KVU-Nr。 321.012.19

-Vlarem II（Corcon bvba）證書：CP0914 / 3073-HCC001

-GOST清除證書：42 1300/9026 10 290 0

應用

根據德國水資源法（WHG）進行泄漏檢測雙層容器，可用于電污染水導電，非易燃液體。

描述

MAXIMAT LW CX緊湊型檢漏儀用于檢測泄漏容器在容器外部，會漏水污染液體。當一個導電液體與檢測器探頭接觸，集成電子設備通過中斷連續輸出信號做出響應。通過中斷信號會觸發聲音和視覺警報。

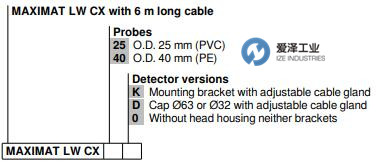

BAMO檢漏儀MAXIMAT LW CX系列其他型號：

BAMO MAXIMAT LW CX 40 K

BAMO MAXIMAT LW CX 40 D

BAMO MAXIMAT LW CX 40 0

BAMO MAXIMAT LW CX 25 K

BAMO MAXIMAT LW CX 25 D

BAMO MAXIMAT LW CX 25 0

BAMO Leak detector NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于BAMO檢漏儀MAXIMAT LW CX 40 D的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for BAMO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.aalatcr.cn.

BAMO檢漏儀MAXIMAT LW CX 40 D規格描述
