規格描述

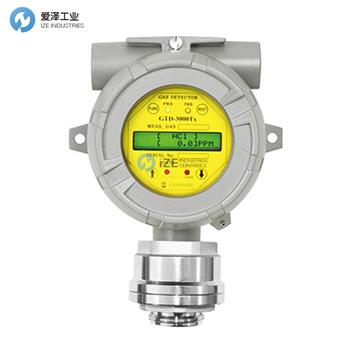

GASTRON氣體檢測儀GTD-3000Tx技術規格

Model	GTD-3000Tx
Measuring gas	02 / Toxic gases (CO, CL2, NH3 & etc)
Measuring type	Diffusion tpe
Measuring method	Electrochemical cell, Semiconductor cell
Measuring range	Refer to Toxic Gas Measuring Range
Response time	< 45 sec / 90% scale
Accuracy	±3% / Full scale
Parameter control	Non intrusive control with a Magnet (calibration, maintenance, alam setting)
Operation mode display	4-LED (Power, 2-stage alarm, 1-trouble)
Measuring value display	LCD display (Built in back light 2-ine, 16 characters)/ OLED Type (Option)
Alarm signal output	2A@30VDC, 0. 5A@125VAC (resistive load) / 3-SPST relay contact(2stage alarm, 1 trouble)
Output signal	Analog : Measuring signal : 4-20mA DC Maintenance signal : 4mA DC Calibration signal : 3mA DC Fault signal : 0mA DC Digital : RS-485 Modbus(Option)
Conduit connection	Standard : PF 3/4" Option : NPT 1/2", NPT3/4", M20 x 1.5P, M25 x 1.5P
Mounting type	2" Pole mount, Wall mount, Duct mount
Operating temperature	-20℃ ~ +60℃
Operating humidity	5 ~ 99%.RH (non-condensing)
Dimensions	156(W) x 196(H) x 110(D)mm
Weight	2.0kg

產品介紹

愛澤工業（ize-industries）并不是本網站所列所有產品的授權代理商或經銷商。本網站使用的所有產品名稱，商標，品牌等均屬于各自品牌廠家所有。本網站在產品或圖片描述中，出現具有這些名稱，商標，品牌等信息的產品僅用于識別目的，并非旨在表明任何與持有者的從屬及授權關系。

GASTRON氣體檢測儀GTD-3000Tx產品介紹

具有隔爆結構的爆炸危險區域有毒氣體和氧氣的連續檢測

內置微處理器的自診斷功能

僅適用于有毒氣體和氧氣的檢測原理，具有出色的選擇性

質量穩定，經驗證的使用壽命檢測原理| 內置背光 LCD 或 OLED 顯示屏

使用磁棒自動校準和程序設置

2段報警，1段故障顯示，繼電器接點輸出

4-20mA (Current source or Sink) 輸出信號

通過 RS-485 Modbus 通訊輕松配置監控系統

帶報警裝置 - 正常：綠色 LED -報警：紅色 LED，蜂鳴器 (95 dB) -故障：黃色 LED

單人校準和維護

檢測低于 TLV 的氣體的優質性能

Continuous detection of toxic gases and oxygen in explosion hazardous area with flame proof structure

Self diagnosis function with built-in Microprocessor

Excellent selectivity by adapting detection principle only for toxic gases & oxygen

Stable quality and proved detection principle for service life | Built-in back light LCD or OLED display

Auto calibration and program setting with a magnet bar

2-stage alarm, 1-trouble display and relay contact output

4-20mA (Current source or Sink) output signal

Easy configuration of monitoring system by RS-485 Modbus communication

With the alarm unit - Normal : Green LED -Alarm : Red LED, Buzzer(95 dB) -Trouble : Yellow LED

Calibration and maintenance by one-man

Superior performance for detecting gases below TLV

GASTRON氣體檢測儀其他常用型號：

GASTRON GTD-5100F

GASTRON GTD-5000F

GASTRON GTD-5000

GASTRON GTD-3000Tx

GASTRON GTD-6000

GASTRON GTD-2000Tx

GASTRON GTD-1000Tx

GASTRON Gas detector NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于GASTRON氣體檢測儀GTD-3000Tx的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for GASTRON products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.

GASTRON氣體檢測儀GTD-3000Tx技術參數及介紹
