規格描述

TELEVAC真空計CC-10系列技術參數

Operating Specifications
Operating Range	1*10-9 Torr to 1000 Torr
Communications	RS-485
Analog Output	0 V to 10 V linear/logarithmic
Programmable Set Points	3 relays
Supply Voltage	+22 V DC to +26 V DC
Maximum Power	8 W
Calibration Medium	Dry air or nitrogen
Overpressure	150 psi
Digital Output Resolution	2 significant digits with exponent
Analog Output Resolution	16 bits
Operating Temperature	0 °C to 50 °C
Storage Temperature	-40 °C to 85 °C
Bakeout Temperature	110 °C (electronics removed)
Response Time	≤ 500 ms
Display Readable Distance	4 m (13 ft)
Accuracy
10-9 Torr to 10-1 Torr	±0.2 of decade
10-1 Torr to 200 Torr	±15% of reading
200 Torr to 1000 Torr	±5% of reading
Analog Output	±10 mV
Physical Characteristics
Enclosure Material	Metallized plastic
Electrical Connections	D-Sub 15-pin male
Weight with Sensor	698 g (1.54 lbs) (NW25 Flange)
Weight without Sensor	355 g (0.78 lbs)
Dimensions	3.7” x 2.75” x 6.3” (NW25 Flange)

產品介紹

愛澤工業（ize-industries）并不是本網站所列所有產品的授權代理商或經銷商。本網站使用的所有產品名稱，商標，品牌等均屬于各自品牌廠家所有。本網站在產品或圖片描述中，出現具有這些名稱，商標，品牌等信息的產品僅用于識別目的，并非旨在表明任何與持有者的從屬及授權關系。

TELEVAC真空計CC-10系列介紹

CC-10 寬量程主動式真空計采用雙傳感器技術，可替代多個傳統真空計，實現十二個數量級壓力的無縫測量。它具有多種功能，包括從 1×10?? Torr 到 1000 Torr 的寬廣測量范圍、RS-485 通信接口、三個可編程設定點以及可選模擬輸出。明亮的 LED 顯示屏即使在遠處也能輕松讀取。

用戶可以通過位于設備正面的四個觸摸控制按鈕或 RS-485 通信接口設置選項。其操作簡便，測量范圍寬廣，使其成為各種真空應用的理想之選。

應用領域及行業

? 粒子加速器

? 國家實驗室、研發

? 半導體

? 薄膜沉積

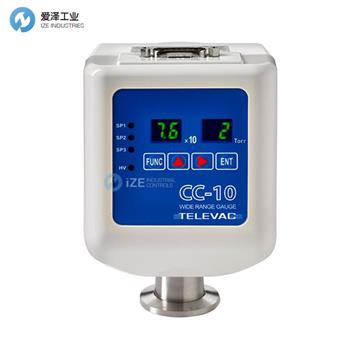

The CC-10 Wide Range Active Vacuum Gauge utilizes dual sensor technology to replace multiple conventional vacuum gauges, permitting seamless measurement of twelve decades of pressure. It has a variety of features including a wide range of measurement from 1*10-9 Torr up to 1000 Torr, RS-485 communications, three programmable set points, and a selectable analog output. The bright LED display makes it easy to read from a distance.

Options can be set from either four touch controls located on the front of the unit or through RS-485 communications. The simplicity of use and wide measurement range make this unit an excellent choice for a variety of vacuum applications.

Applications and Industries

? Particle accelerators

? National labs, research, and development

? Semiconductor

? Thin film deposition

TELEVAC真空計CC-10系列其他常用型號：

TELEVAC CC-10 2-7980-031

TELEVAC CC-10 2-7980-032

TELEVAC CC-10 2-7980-052

TELEVAC Vacuum Gauge NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于TELEVAC真空計CC-10 2-7980-031的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for TELEVAC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.

TELEVAC真空計CC-10 系列CC-10 2-7980-031技術參數及介紹
