規格描述

TEKTRONIX探頭TDP0500技術參數

Bandwidth (probe only)	500 MHz
Attenuation	5X, 50X
Differential mode input voltage	±42 v (DC + pk AC); 30 Vrms
Rise time (probe only)	<700 ps
CMRR	>55 dB at 30 kHz >50 dB at 1 MHz >18 dB at 250 MHz (warranted at 50X attenuation)
Maximum input voltage (nondestruct)	±100 V (DC + pk AC)
Gain accuracy at DC	±5%
Differential input capacitance	≤1 Pf
Differential input resistance	1 MΩ
Sensitivity/noise level	5X attenuation: 2 mVrms; 10 mVrms (referred to the probe output) 50X attenuation: 1 mVrms; 50 mVrms (referred to the probe output)
Propogation delay	6.5 ns
Common mode input voltage	±35 v (DC + pk AC); 25 Vrms
Differential input offset range	±42 V (5X or 50X attenuation)
DC reject	5X attenuation: 0.4 Hz 50X attenuation: 4 Hz
Selectable bandwidth filter limits	100 Hz, 10 kHz, 1 MHz, Full
Oscilloscope interface recommendations	TekVPI? Probe When using MSO/DPO2000/B series, the TekVPI Power supply (Tektronix part number, 119-7465-xx) and power cable is needed.
Power requirements	Powered directly by oscilloscopes with the TekVPI interface
Height	1.6 in (4.1 cm)
Width	1.2 in (3.05 cm)
Length	4.2 in (10.7 cm)
Weight	0.320 lbs (0.146 kg)

產品介紹

愛澤工業（ize-industries）并不是本網站所列所有產品的授權代理商或經銷商。本網站使用的所有產品名稱，商標，品牌等均屬于各自品牌廠家所有。本網站在產品或圖片描述中，出現具有這些名稱，商標，品牌等信息的產品僅用于識別目的，并非旨在表明任何與持有者的從屬及授權關系。

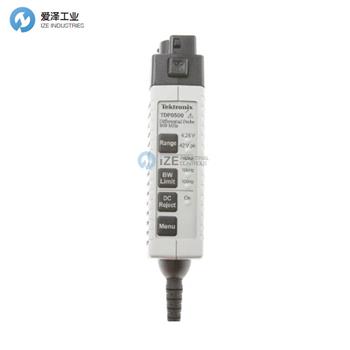

TEKTRONIX探頭TDP0500產品描述

TDP0500高壓差分探頭專為配合使用并直接連接到配備TekVPI?探頭接口或TekProbe BNC 接口的示波器而設計。這些探頭解決了三大傳統測量難題，實現了高速信號采集和測量保真度：

出色的電氣性能

多功能被測設備連接

易于使用

TDP0500 High-voltage Differential Probes are specifically designed for use with and direct connection to Tektronix oscilloscopes with either the TekVPI? probe interface, or TekProbe BNC Interface. These probes achieve high-speed signal acquisition and measurement fidelity by solving three traditional measurement challenges:

Outstanding Electrical Performance

Versatile Device-Under-Test Connectivity

Ease of Use

主要特點：

出色的電氣性能：

可選帶寬限制濾波器

直流抑制

多功能 DUT 連接：

用于探測小幾何電路元件的小型緊湊探頭

直針、方針、焊接、可變間距標準配件

堅固可靠的設計

便于使用

在示波器顯示屏上提供自動單位縮放和讀數

使用 TekVPI? 探頭接口直接連接到示波器

輕松訪問示波器顯示的探頭菜單，獲取探頭設置控制和操作狀態信息

通過示波器進行遠程 GPIB/USB 探頭控制

AutoZero – 將輸出偏移歸零

Key Features:

Outstanding electrical performance

Selectable bandwidth-limiting filters

DC reject

Versatile DUT connectivity

Small compact probe head for probing small geometry circuit elements

Straight pin, square pin, solder down, variable pitch standard accessories

Robust design for reliability

Ease of use

Provides automatic units scaling and readout on the oscilloscope display

Connect directly to oscilloscopes with the TekVPI? probe interface

Easy access to scope-displayed probe menu for probe setup control and operating status information

Remote GPIB/USB probe control through the oscilloscope

AutoZero – zeros out output offset

TEKTRONIX探頭其他常用型號：

TEKTRONIX TDP0500

TEKTRONIX TDP1000

TEKTRONIX P6251

TEKTRONIX P5200A

TEKTRONIX P5202A

TEKTRONIX P5205A

TEKTRONIX THDP0200

TEKTRONIX TMDP0200

TEKTRONIX THDP0100

TEKTRONIX P5210A

TEKTRONIX Probe NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于TEKTRONIX探頭TDP0500的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
