規格描述

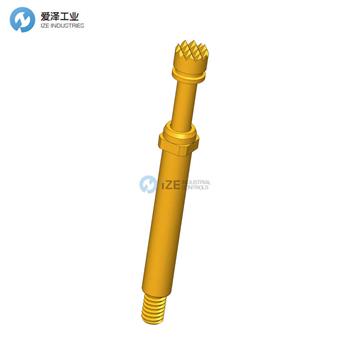

INGUN探針HSS-120 306 300 A 1502技術參數

Technical data
General data
Product group :	High-current test probe
Sub-product group :	Standard HSS (press-in)
Series :	HSS-120
Grid :	4 mm
Contacting from :	Pin, Post, Flat contact
Magnetic :	Yes
Installation type :	Plug-in
Quick-exchange system :	Yes
Adjustable installation height :	No
Non-rotating :	No
Compatible receptacle(s) :	KS-113, KS-113 23
Min. temperature :	- 100 °C
Max. temperature :	+ 200 °C
RoHS-compliant :	RoHS-3;6c
Electrical data
Current load capacity / rated current :	30 A
Typical resistance (Ri) :	< 10 mOhm
Mechanical data
Total length :	27.3 mm
Barrel diameter :	2.65 mm
Maximum stroke :	5.3 mm
Spring pre-load :	0.39 N
Collar height :	02
Working stroke :	4 mm
Wireless receptacle data
Spring force at working stroke :	1.5 N
Tip style data
Tip style :	06 serrated
Tip diameter :	3 mm
Tip style surface :	A gold
Tip style material :	3 CuBe

產品介紹

愛澤工業（ize-industries）并不是本網站所列所有產品的授權代理商或經銷商。本網站使用的所有產品名稱，商標，品牌等均屬于各自品牌廠家所有。本網站在產品或圖片描述中，出現具有這些名稱，商標，品牌等信息的產品僅用于識別目的，并非旨在表明任何與持有者的從屬及授權關系。

INGUN探針HSS系列介紹

? 堅固耐用的大電流探頭，尺寸適合電流負載容量比

? 低電阻探頭，Ri 典型值：< 10 mOhm

? 用于功能和老化測試

? 多種尖端樣式和彈簧力可供選擇，可實現與 DUT 的更佳接觸

? 測試夾具中行程比的更佳調整：測試探針套環有不同的高度，與插座結合使用，可實現多種安裝高度

? Trusted, robust high-current probes, optimally sized for current load capacity ratio

? Low resistance probe with Ri typical: < 10 mOhm

? For use in function and burn-in tests

? Large selection of tip styles and spring forces for optimum contact with DUT

? Optimum adjustment of the stroke ratios in the test fixture: The test probe collar is available in different heights, which, in combination with the receptacles, allows a range of installation heights

INGUN探針HSS-120系列其他常用型號：

INGUN HSS-120 302 400 A 1505

INGUN HSS-120 303 300 A 1005

INGUN HSS-120 302 230 A 3005

INGUN HSS-120 302 400 A 1510

INGUN HSS-120 319 300 A 1502

INGUN HSS-120 319 300 A 1510

INGUN HSS-120 305 300 A 1005

INGUN HSS-120 305 300 S 1510

INGUN HSS-120 305 300 S 3002

INGUN HSS-120 319 300 A 3002

INGUN HSS-120 305 300 S 2202

INGUN HSS-120 305 140 A 1002

INGUN HSS-120 305 300 S 3010

INGUN HSS-120 355 300 A 3010

INGUN HSS-120 353 300 S 3002

INGUN HSS-120 303 300 A 3010

INGUN HSS-120 353 300 S 3010

INGUN HSS-120 353 300 S 1510

INGUN HSS-120 306 400 A 1005

INGUN HSS-120 302 230 A 1005

INGUN HSS-120 303 300 A 1502

INGUN HSS-120 303 300 A 2202

INGUN HSS-120 305 230 A 2202

INGUN HSS-120 306 400 A 3002

INGUN HSS-120 306 300 A 3002

INGUN HSS-120 306 300 A 3010

INGUN HSS-120 306 300 A 1502

INGUN TEST PROBES NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于INGUN探針HSS-120 306 300 A 1502的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for INGUN products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.

INGUN探針HSS-120 306 300 A 1502技術參數及介紹
