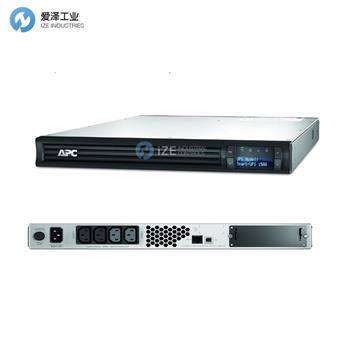

APC UPS電源SMT1500RMI1U技術參數
Specifications | |
Overview | |
Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
Lead time | Usually in Stock |
Main | |
Run time for load 1000W | 4min 45s |
Max. Capacity Used | 100 |
Product or component type | Uninterruptible power supply (UPS) |
Complementary | |
Communication port type | SmartSlot |
Mounting mode | Rack-mounted with included kit |
UPS connectivity | Serial port |
Battery type | Lead-acid internal included |
Batteries & Runtime | |
Battery type | Lead-acid battery |
Extended runtime | 0 |
Number of battery filled slots | 0 |
Number of battery free slots | 0 |
Battery recharge time | 4 h |
Number of battery replacement quantity | 1 |
Battery life | 3…5 year(s) |
Battery charger power | 73 W rated |
General | |
Provided equipment | CD with software |
Number of power module | 0 |
Number of power module filled slots | 0 |
Number of power module free slots | 0 |
Redundant | No |
Physical | |
Number of rack unit | 1U |
Cable length | 2.4 m |
Colour | Black |
Height | 44 mm |
Width | 432 mm |
Depth | 665 mm |
Net weight | 24.09 kg |
Mounting location | Front |
Mounting preference | Lower |
Mounting mode | Rack-mounted |
Two post mountable | 0 |
USB compatible | No |
Input | |
Main Input Voltage | 230 V AC 1 phase |
Input Connection Type | IEC 320 C14 |
Input voltage limits | 174...286 V |
Network frequency | 50/60 Hz |
Output | |
Main Output Voltage | 230 V AC 1 phase |
Other Output Voltage | 220 V |
Rated power in W | 1000 W |
Rated power in VA | 1500 VA |
output connection type | 4 IEC 320 C13 |
Harmonic distortion | Less than 5 % |
Maximum configurable power in VA | 1500 VA |
Maximum configurable power in W | 1000 W |
UPS type | Line interactive |
Wave type | Sine wave |
Environmental | |
Acoustic level | 46 dBA |
Heat dissipation | 116 Btu/h |
Operating altitude | 0...10000 ft |
Ambient air temperature for operation | 0…40 °C |
Ambient air temperature for storage | -15…45 °C |
Storage altitude | 0…15240 m |
Relative humidity | 0…95 % |
Storage Relative Humidity | 0…95 % |
