WAGNER控制單元756系列技術參數
Areas of application: | Holding and transport, clamping |
Nominal voltage range: | 110 - 360 [V DC] |
max. rated current: | 16 - 60 [A DC] |
Magnet design: | Electro-magnet, Electro-permanent magnet |
Design options: | Adjustment of clamping force, electrical cabinet |
Protection class: | IP 20 |
Dimensions WxHxD: | 125x375x245 [mm] |
Weight: | 7.2 [kg] |

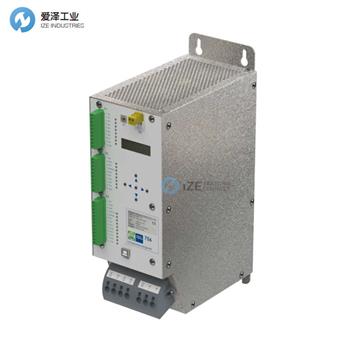

WAGNER控制單元756系列介紹
電子極反轉控制單元 756 是一種可控電流或電壓源，用于磁化和反轉以下設備的極性：
? 電磁鐵 (EL)
? 電永磁體 (EP)
? 釹系統電永磁體 (Nd)
該系統通過 24 V DC 控制輸入進行操作。系統狀態通過三行顯示屏、LED 指示燈和 PhotoMOS 繼電器輸出。
該設備通過三相 50/60 Hz 電源連接供電。該設備適用于額定電流至少為 6 A 的螺線管。
USG 756 的額定輸入功率為 22.17 kVA（3 x 400 V，32 A）。根據應用情況（螺線管類型、額定電壓和所連接螺線管的電流消耗），該設備還可以使用較低的電壓和/或較低的保險絲額定值供電。
要關閉電永磁螺線管或降低電磁鐵的剩磁，必須反轉極性。這會產生一個改變極性并降低強度的磁場。此過程可確保將剩磁降至最低。USG 756 通過磁鐵調節必要的電流/電壓。
USG 756 交付時，極性反轉過程在工廠預設。如果需要，可以通過選擇不同的極性反轉程序來更改極性反轉過程。還可以使用可選的監控程序更改極性反轉程序。
使用可選的多磁鐵模式，最多可以保存四個不同磁鐵的數據集。數據記錄包含與螺線管控制相關的所有數據。這允許在一個極性反轉控制單元上交替操作最多四個不同的螺線管。
The Electronic-Pole-Reversal-Control-Unit 756 is a controllable current or voltage source for magnetising and reversing the polarity of:
? Electro magnets (EL)
? Electropermanent magnets (EP)
? Electropermanent magnets with neodymium system (Nd)
The system is operated via 24 V DC control inputs. The system statuses are output via a three-line display, LED indicators and PhotoMOS relays .
The device is supplied via a 3-phase 50 / 60 Hz mains connection. The device is suitable for solenoid rated currents of at least 6 A.
The USG 756 has a rated input power of 22.17 kVA (3 x 400 V, 32 A). Depending on the application (type of solenoid, rated voltage and current consumption of the connected solenoid), the device can also be supplied with a lower voltage and / or with a lower fuse rating.
To switch off electro-permanent solenoids or to reduce the residual magnetism of electro-magnets, the polarity must be reversed. This generates a magnetic field that changes polarity and decreases in intensity. This process ensures that the residual magnetism is reduced to a minimum. The USG 756 regulates the necessary currents / voltages through the magnet.
The polarity reversal process is preset at the factory when the USG 756 is delivered. If required, the polarity reversal process can be changed by selecting a different polarity reversal programme. It is also possible to change the polarity reversal programmes using the optionally available monitor programme.
With the optional multi-magnet mode, up to four data sets of different magnets can be saved. The data records contain all the data relevant for solenoid control. This allows up to four different solenoids to be operated alternately on one pole-reversal control unit.
WAGNER控制單元756系列其他常用型號：
WAGNER 756-EL110/16
WAGNER 756-EL220/16
WAGNER 756-EL110/30
WAGNER 756-EL220/30
WAGNER 756-EP210/30
WAGNER 756-EP360/30
WAGNER 756-EP210/60
WAGNER 756-EP360/60
WAGNER 756-EP36060S
WAGNER CONTROL-UNIT NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WAGNER控制單元756-EP36060S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for WAGNER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
WAGNER控制單元756系列756-EP36060S技術參數及介紹
