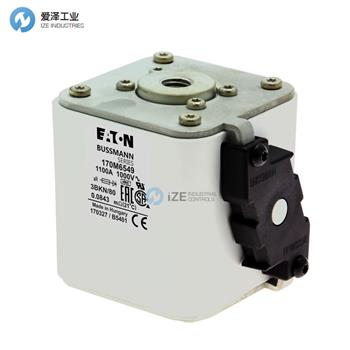

EATON熔斷器170M6549技術規格
General specifications | |
Product Name | Eaton Bussmann series high speed square body fuse |
Catalog Number | 170M6549 |
Model Code | FUSE 1100A 1000V 3BKN/80 AR |
Product Length/Depth | 138 mm |
Product Height | 45 mm |
Product Width | 58 mm |
Product Weight | 1264 g |
Warranty | Not Applicable |
Compliances | CE Marked |
Certifications | IEC Rated |
Global Catalog | 170M6549 |
Product specifications | |
Amperage Rating | 1100 A |
Breaking capacity | 100 kA |
Fuse indicator | Centre fuse status indicator |
Insulated metal gripping lugs (IMGL) | No |
Utilization category | aR (accompanied semiconductor protection) |
Voltage type | AC/DC |
Fuse size | 3 |
Rated voltage AC | 1000 V |
Center-to-center distance of connections | 82.4 mm |
Current type | AC |
Mounting dimension | M12 |
Class | Class aR |
Clearing (I2T) | 2800000 at 1000 V, 3600000 at 1250 V |
Watt losses | 140 W |
Fuse shape | Square body, flush end contacts |
Pre arc (I2T) | 575000 |
Color | None |
Interrupt rating | 100 kAIC |
Fitted with: | Type K Indicator for micro |
Construction size | 3 |
Mounting method | Flush |
Packaging type | Standard |
Voltage rating | 1000 V (IEC) |
Type | Fuse |
Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers |
Fuse type | Flush end |
Fuse system (according to IEC 60269) | IEC 60269-4 flush end connections type A |
