AIR-LOGIC塑料針閥F315485產品參數
規格參數
品牌：Air Logic
顏色：黑色
管子夾持壓力：125 psi（8.6 bar）
基礎密封：壓縮型（Compression）
連接類型：帶扣式（Barbed）
管內徑（ID）：1/8英寸
類型：10-32 轉角旋轉接頭（Swivel Elbow）
接觸潤濕材料：丁腈尼龍（Buna Nylon）
其他信息：
帶扣連接無需潤滑劑或螺紋密封劑，簡便易用，只需將軟管推到扣口上即可完成連接。
該產品可以與其他Air Logic產品集成使用，如止回閥、過濾器、開關和調節器。根據需求還可定制材料。
旋轉產品允許制造完整的軟管組件，配以配件。這有助于生產過程中正確連接關鍵管路，避免錯誤。同時，旋轉功能也能減少由于移動或重新定位帶來的管路應力。
Specifications
Brands：Air Logic
Color：Black
Typical Tube Retention Pressure1：125 psi 8.6 bar
Base Seal：Compression
Connection Type：Barbed
Tubing Inside Diameter (ID)：1/8 in
Type：10-32 Swivel Elbow
Wetted Material(s)：Buna Nylon
Additional Information：
Barbed connections are free of lubrication or thread sealant used in other styles of connection. Simply push the tube over the barb and the connection is complete.
This product may be integrated into other Air Logic products such as check valves, filters, switches and regulators. Custom materials may be available upon request.
Swivel products enable the production of tubing assemblies that can be made complete with fittings. This enables error-proofing in manufacturing where critical tubing assemblies must be connected correctly. Swivel products also relieve stress on tubing due to moving or re-positioning.
AIR-LOGIC塑料針閥F315485產品介紹

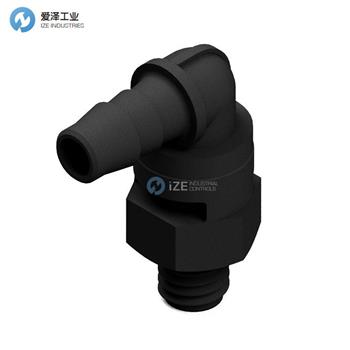

F315485 1/8 英寸 (in) 管材內徑 (ID)，85 倒鉤，10-32 旋轉彎頭接頭 (F315485) - 2
旋轉接頭將管材連接到螺紋孔。倒鉤（和管材）可以從底座自由旋轉。集成密封條為配合部件提供便捷且經濟高效的密封。倒鉤連接是一種簡潔、久經考驗且經濟高效的連接方法。管材的環向強度能夠牢牢地固定在倒鉤接頭周圍。Air Logic 的第一個倒鉤沒有分型線，從而形成良好的密封，額外的倒鉤則增加了管材的固定力。丁腈橡膠是標準彈性體，但我們也可以生產乙丙橡膠 (EDPM)、氟橡膠 (FKM) 或硅膠。
F3154851/8 Inch (in) Tubing Inside Diameter (ID), 85 Barb, 10-32 Swivel Elbow Fitting (F315485) - 2
Swivel fittings connect tubing to a threaded hole. The barb (and tubing) can be freely rotated from the base. An integrated sealing bead provides a convenient and cost effective seal against the mating part. Barbed connections are a clean, time tested and cost efficient method of connection. The hoop strength of the tube holds around the barbed fitting. Air Logic's first barb is free of a parting line to create a good seal, additional barbs increase holding force for tube retention. Buna is used as the standard elastomer, but we are also able to produce with Ethylene Propylene Diene Monomer (EDPM), Fluoroelastomers (FKM), or Silicone.
AIR-LOGIC塑料針閥其他常見型號：
AIR LOGIC F315080
AIR LOGIC F315083
AIR LOGIC F315085
AIR LOGIC F315086
AIR LOGIC F315480
AIR LOGIC F315483
AIR LOGIC F315485
AIR LOGIC F315486
AIR LOGIC F315580
AIR LOGIC F315583
AIR LOGIC F315585
AIR LOGIC F315586
AIR-LOGIC Plastic needle valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AIR-LOGIC塑料針閥F315485的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AIR-LOGIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: sales@ize-industries.com.
