Teledyne RESON水聽器TC4038系列技術參數
TECHNICAL SPECIFICATIONS | |
Usable frequency range: | 10kHz - 800kHz |
Linear frequency range: | 100 to 500kHz ±3dB |
Receiving sensitivity nominal: | -228dB ±3dB re 1V/μPa (at 100kHz) |
Horizontal directivity pattern: | Omnidirectional ±2dB (at 100kHz) |
Vertical directivity pattern: | 60°to 120° ±3dB (at 100kHz) |
Nominal capacitance: | 0.5nF (TC4038-1 w 2m of cable) |
Max. operating pressure: | 0.2MPa = 2atm |
Max. operating depth: | 20m |
Max. survival depth: | 30m |
Equivalent noise: | 80dB re 1μPa (with VP1000 Pre-amp √Hz at 1 kHz) |
Max. sound pressure: | 0.3M Pa |
Operating temperature range: | -2°C to +40°C |
Storage temperature range: | -30°C to +50°C |
Leakage resistance: | >2Gohm |
Impedance: | 100Mohm (min. input for min. noise down to 10kHz lower frequency limit) |
Weight in air: | 20g |
Cable (length and type): | 2m double-shielded low noise FEP. Insulated OD 1.65mm |
Housing material: | Stainless Steel AISI 304 |
Connector: | LEMO FFA.00.250.NTAC |
Teledyne RESON水聽器TC4038系列介紹

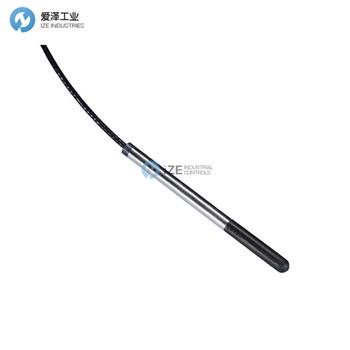

TC4038 是一款微型探頭水聽器，專門設計為標準參考水聽器，適用于 100kHz 至 500kHz 范圍內的高頻。 TC4038 在指定頻率范圍內提供平坦的頻率響應和全向特性。 傳感器元件具有出色的穩定性，可確保長期可靠的靈敏度。
The TC4038 is a miniature probe hydrophone, specifically designed as a standard reference hydrophone for high frequencies in the range: 100kHz to 500kHz. The TC4038 provides a flat frequency response and omnidirectional characteristics in the specified frequency range. The sensor element has excellent stability, which ensures reliable sensitivity over long periods of time.

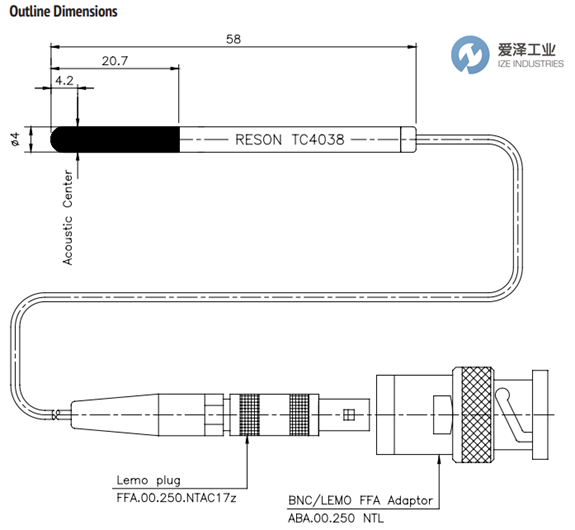

Teledyne RESON水聽器TC4038系列技術尺寸
Teledyne RESON水聽器其他常用型號：
Teledyne TC4013
Teledyne TC4014
Teledyne TC4038-4
Teledyne TC4033
Teledyne TC4034
Teledyne TC4035
Teledyne TC4037
Teledyne TC4040
Teledyne TC4047
Teledyne TC4059
Teledyne Hydrophone NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于Teledyne RESON水聽器TC4038-4的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for Teledyne products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
Teledyne RESON水聽器TC4038系列TC4038-4技術參數及尺寸
