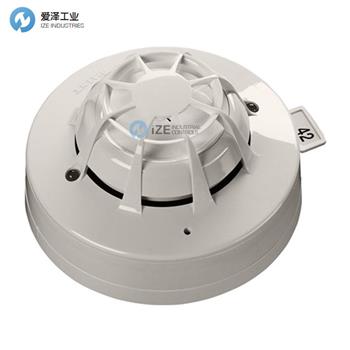

APOLLO煙氣探測儀58000-750技術規格
Detection principle | Smoke: Photoelectric detection of light scattered by smoke particles |
Sensitivity | 3.0 + 1.0 - 1.84 %/ft |
Communication protocol | XP95, Discovery and CoreProtocol compatible |
Operating voltage | 17 - 28 V dc |
Modulation voltage | 5 - 9 V dc peak to peak |
Supervisory current | 500 μA |
Surge current | 1 mA |
Alarm current, LED illuminated | 3.5 mA |
Heat element rating | 135 oF - Mode 5 |
Operating temperature range | 32 oF to 100 °F |
Humidity | 0% to 95% RH (no condensation or icing) |
Air velocity | 0 - 300 fpm |
Standards & approvals | UL, ULC, FM, CSFM and MSFM |
Dimensions | 3.93 in., diameter x 16.5 in. height |
Weight | 3.70 oz |
Materials | Housing: White flame-retardant polycarbonate |
Test method | Home safeguard |
Spacing | Install as per NFPA72 and local requirements. On smooth, flat ceilings,spacing of 30 feet may be used as a guide |
APOLLO煙氣探測儀58000-750產品介紹
Discovery UL光電/熱多傳感器探測器包含一個光電煙霧傳感器和一個熱敏電阻溫度傳感器，它們的輸出組合在一起以提供最終的模擬值。
? 廣泛應用的理想選擇
? 增強的誤報管理
? 不受風或大氣壓力的影響
? 非常適合敏感環境
? 五種 UL 批準的響應模式
? 僅加熱和僅光電選項
? 遠程測試功能
The Discovery UL Photoelectric/Heat Multisensor Detector contains a photoelectric smoke sensor and a thermistor temperature sensor whose outputs are combined to give the final analogue value.
? Ideal for a wide range of applications
? Enhanced false alarm management
? Unaffected by wind or atmospheric pressure
? Well suited to sensitive environments
? Five UL approved response modes
? Heat only and photoelectric only options
? Remote test feature
APOLLO煙氣探測儀其他常用型號：
APOLLO 58000-650APO
APOLLO 58000-550APO
APOLLO 58000-450APO
APOLLO 58000-011USA
APOLLO 58000-750APO
APOLLO 58000-600SIL
APOLLO 58000-305APO
APOLLO 58000-700SIL
APOLLO 58000-400MAR
APOLLO 58000-500MAR
APOLLO 58000-400APO
APOLLO 58000-700APO
APOLLO 58000-300APO
APOLLO 58000-600MAR
APOLLO 58000-700MAR
APOLLO 58000-700APO
APOLLO 58000-400SIL
APOLLO MULTI-SENSOR DETECTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于APOLLO煙氣探測儀58000-750的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for APOLLO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.aalatcr.cn.
APOLLO煙氣探測儀58000-750技術參數及介紹
