HOCHIKI熱探測器DCD190技術參數
SPECIFICATIONS | |
Response Temperature | 135° ± 7.5°F |
Supply Voltage | 15.0 - 33.0 VDC |
Supervisory Current | 35μA @ 24 VDC |
Surge Current | 160μA max. @ 24 VDC |
Alarm Current | 150μA max. @ 24 VDC |
UL Listed Ambient Temperature | 32°F ~ 100°F |
Operating Temperature Range | 14°F ~ 122°F |
Storage Temperature Range | -4°F ~ +140°F |
Contact Rating | N/O Contacts |
Color & Case Material | Bone, Polycarbonate |
Mounting | Refer to the NS Conventional |
HOCHIKI熱探測器DCD190產品介紹

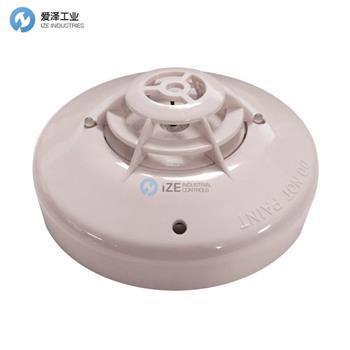

DCD-190 - 190度定溫/升速熱探測器
DCD-190定溫/升速熱探測器適用于預期會發生高熱輸出火災的場所或環境條件不適合使用其他探測方式的區域。熱探測器主要用于財產保護。請不要依賴熱探測器作為生命安全的保障。在關乎生命安全的場所，應同時使用煙霧探測器。必須由UL認證的火災報警控制面板對DCD-190熱探測器進行電子監控。
所有NS傳統設備與Hochiki America的HSB、HSC和YBA類型底座在機械上兼容。請查閱具體控制面板的列表以確認使用的底座符合要求。
標準特性
? 支持固定溫度/升速方式，135°F或190°F熱探測器可選
? UL認證，間距可達70英尺 x 70英尺
? 兼容2線或4線底座，提供繼電器底座選項
? 操作高度穩定，具備RF/瞬態干擾保護
? 低待機電流，標稱35μA
? 內置兩個電源/報警LED，便于360°觀察
? 完全電子操作
? 電源/報警LED指示探測器狀態
? 兼容Hochiki SLR-24V和SIJ-24探測器及其底座
DCD-190 - Heat Detector 190 Degree Fixed Temperature/Rate of Rise
The DCD-190 fixed temperature/rate-of-rise heat detector are suited for installation where high heat output fires are expected or in areas where ambient conditions would not allow use of other detection methods. Heat detectors are intended for protection of property. Do not rely on heat detectors for life safety protection. Where life safety is a concern, smoke detectors must also be used. A UL listed fire alarm panel must electronically supervise the DCD-190 heat detectors.
All NS conventional devices are mechanically compatible with Hochiki America HSB, HSC and YBA type bases. Please check individual panel listings for appropriate listed bases.
STANDARD FEATURES
? Choice of fixed temperature/rate-of-rise 135°F or 190°F heat detector
? UL Listed spacing up to 70' by 70'
? 2 or 4 wire base compatibility, relay bases available
? Highly stable operation, RF/Transient protection
? Low standby current, 35μA nominal
? Two built-in power/alarm LED's for 360° viewing
Fully electronic operation
? Power/alarm LED's confirm detector status
? Compatible with Hochiki SLR-24V and SIJ-24 detectors and their bases
HOCHIKI熱探測器DCD系列其他常用型號：
HOCHIKI DCD190
HOCHIKI DCD-135
HOCHIKI HEAT DETECTO NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HOCHIKI熱探測器DCD190的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HOCHIKI products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
