HAUG電離棒EI RN系列介紹
Technical data | ||
Types | EI RN TPE | Order-No.: 03.8505.000 |
Diameter | 18 mm /20 mm | |
Length | from 150 to 4.500 mm lieferbar. | |
Operating temperature | +5°C to +45°C | |
Storage/transport temperature | -15°C to +60°C | |
Optimum effective distance | 20 – 30 mm | |
Effective length | Bar length - 100 mm | |
Smallest bending radius (cable) | R 50 | |
HAUG電離棒EI RN系列產品介紹
HAUG EI RN 靜電消除條是一款強大堅固的設備。其結構滿足所有技術要求，在卷材、板材和網（連續生產產品）加工過程中多次證明其在去除靜電方面的價值。即使在高速運轉下，也能可靠有效地去除影響生產的表面靜電。
HAUG systemX-2000同軸高壓插頭和插座連接具有獨特優勢，密封的高壓插頭可以輕松且無需工具連接到HAUG電源箱。柔性同軸屏蔽電纜連接帶電離裝置與電壓供應。
EI RN靜電消除條的圓形結構允許沿材料運動方向進行精確的軸向調節。此靜電消除條觸摸安全。特殊耐磨電極確保長久使用壽命。
其他類型的靜電消除條還包括：
EI RNE：與EI RN相似，但具有在條端的高壓連接，便于串聯多個靜電消除單元。
EI RA：無高壓電纜，適用于連接專用的分離高壓電纜（例如VK-Norm、VK-ATL等）
EI RAE：與EI RA類似，但在條端具有高壓連接，便于串聯多個靜電消除單元
推薦使用建議：
HAUG靜電消除條常與包裝、薄膜、印刷和紡織行業的機器配合使用，也適用于許多其他工業應用。建議在材料網的上下各安裝一條靜電消除條。EI RN靜電消除條適用于輸送速度≤ 100米/分鐘的工藝。

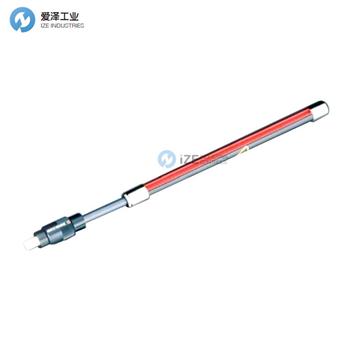

The HAUG EI RN ionizing bar is a powerful and rugged piece of equipment. Its construction satisfies all technical requirements and it has proven its value repeatedly in the removal of electrostatic charges during roll, sheet and web (continuous product) processing. Production interfering surface charges can be removed reliably and effectively – even at high operating speeds.
The coaxial high-voltage plug-and-socket connection of the HAUG systemX-2000 offers a unique advantage in that the gastight high-voltage plug can be connected to the HAUG power pack easily and without tools. The flexible, coaxially shielded cable connects the ionizing unit with the voltage supply.
The round construction of the EI RN ionizing bar permits the exact axial adjustment in the direction of travel of the material. The ionizing bar is safe to touch. Special wear-resistant electrodes guarantee long service life.
Further bar types are available
EI RNE as EI RN, but with high-voltage connection at the end of the bar for series connection of ionizing units.
EI RA without HV-cable, suitable for connection of a flexible, separate high-voltage cable (type VK-Norm, VK-ATL a.o.)
EI RAE, as EI RA but with high-voltage connection at the end of the bar for series connection of ionizing units.
Recommendation
HAUG ionizing bars are used with machines in the packaging, film, printing and textile industries, as well as for many other industrial applications. It is recommended that two ionizing bars be installed above and below the material web.
The ionizing bar EI RN is suitable for feed speeds ≤ 100 m/min.
HAUG電離棒EI RN系列其他型號列舉：
HAUG EI RNAE 103 000 N
HAUG EI RN
HAUG EI RNE
HAUG EI RA
HAUG VK-Norm 21
HAUG VK-Norm 22
HAUG VK-Norm 23
HAUG VK-Norm 24
HAUG EI RAE
HAUG Ionization rod NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HAUG電離棒EI RNAE 103 000 N的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for HAUG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.aalatcr.cn.
HAUG電離棒EI RN系列EI RNAE 103 000 N產品介紹
