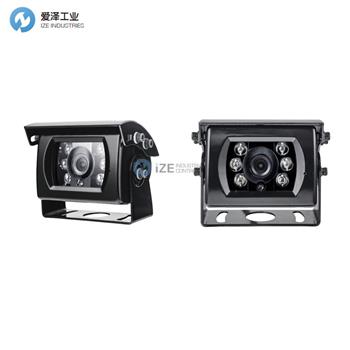

SMART PARK倒車攝像頭CAM150技術參數
SPECIFICATIONS | |
Item | CAM150 |
Image Type | Color CCD |
Number of effective pixels | 500 (H) × 582 (V) approx. 0.29M pixels |
Total number of pixels | 537 (H) × 597 (V) approx. 0.32M pixels |
Image Size | Diagonal 4.5mm (Type 1/4”) |
Lens | Focal Length 3.6mm Maximum Aperture F2.0 |
Angle of view | 110° diagonal |
View angle (Horizontal) | 82° |
View angle (Vertical) | 60° |
Synchronization | Internal |
Horizontal Resolution | 420 TV Line |
Signal to Noise Ratio | 48dbm |
Video signal (75ohm) | 1.0Vp-p |
LUX | 0 LUX With IR LED (ON/OFF) |
IR switch control | Photosensing automatic control |
Audio input | Condenser Microphone |
Power Requirements | DC 12V/24V |
Power Consumption | (Max) 1.2W |
Operating Temperature Range | -30° ~ +85° ℃ RH95% Max |
Storage Temperature Range | -40° ~ +105° ℃ RH95% Max |
Dimension | 82 (L) x 73 (W) x 58 (D) mm |
Weight | Approx (Including Mounting Bracket) 380g |
Vibration | 5.0G |
Waterproof Grade | IP69K |
SMART PARK倒車攝像頭型號
SMART PARK CAM150
SMART PARK CAM-325
SMART PARK CAM-330
SMART PARK reversing camera NEW + ORIGINAL+ ONE YEAR WARRANTY
