HOCHIKI熱探測器ALN-E停產替代型號為ALN-E(HFP)
HOCHIKI熱探測器ALN-E(HFP)技術參數
Specification | |
Ordering Code | ALN-E(HFP) |
Operating Voltage | 17-41Vd.c. |
Low Power Mode (typ) | 120 μA |
Quiescent Current (typ) | 400 μA |
Alarm Current (controlled by CIE) | 9.1 mA (excluding remote indicator) |
Transmission Method | Digital Communications Using ESP |
Operating Temperature Range | -10 °Cto + 50 °C |
Operating Humidity | 95% RH - Non Condensing (at 40 °C) |
Storage Temperature Range | -30 °C to +60 °C |
Storage Humidity | <80%RHat60°C |
Colour L Case Material | White L ABS |
Weight (g) | 95 |
Diameter (mm) 1 Height (mm) | 100 / 45 |
Compatible Bases | YBN-R/3, YBO-R/SCI, YBO-BS, YBO-BSB, YBN- R/3(SCI) |
Base Fixing Centres (mm) | 48 ~ 74 |
Approvals | LPCB & Vds |
HOCHIKI熱探測器ALN-E(HFP)產品介紹
型號ALN-E(HFP)是光電煙霧傳感器，完全兼容Hochiki的ESP模擬可尋址協議。
ALN-E(HFP)采用了Hochiki最新的高性能腔體技術，消除了在大多數應用中使用電離煙霧傳感器的必要性。這也使傳感器的閾值水平得以提高，從而改善信噪比并減少誤報的可能性。
ALN-E(HFP)的煙霧腔體易于拆卸或更換以進行清潔，并使用獨特的改進擋板設計，允許煙霧進入腔體的同時阻擋環境光線。
特點：
可拆卸的高性能腔體
雙LED指示燈允許360度視角 - 查詢時顯示綠色，火災時變?yōu)榧t色
鎖定機制（傳感器與底座之間）
可變靈敏度
電子尋址
從面板控制脈沖/非脈沖*
獲LPCB和VdS認證
提供SIL 2級認證的變種

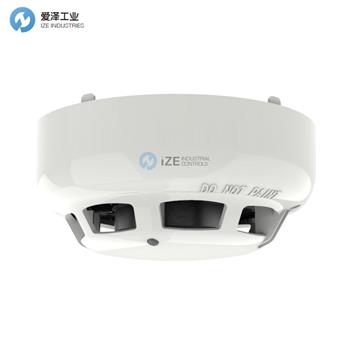

Model ALN-E(HFP) is a Photoelectric Smoke Sensor, which is fully compatible with Hochiki's ESP Analogue Addressable Protocol.
The ALN-E(HFP) incorporates Hochiki's newest High Performance Chamber Technology removing the need to use Ionisation Smoke Sensors in the majority of applications.
This also allows the sensor threshold level to be increased, thereby improving the signal to noise ratio and reducing susceptibility to false alarms.
The ALN-E(HFP) smoke chamber is easily removed or replaced for cleaning and utilises a unique improved baffle design which allows smoke to enter the chamber whilst keeping out ambient light.
Features
Removable, High Performance chamber
Twin LEDs allow 360° viewing – green when polling, turn red in fire
Locking mechanism (sensor to base)
Variable sensitivity
Electronically addressed
Pulsing/non-pulsing controlled from panel*
Approved by LPCB & VdS
SIL Level 2 approved variants available
HOCHIKI熱探測器其他常用型號：
HOCHIKI ALN-E(HFP)
HOCHIKI ALN-E(WHT)/SIL
HOCHIKI ALN-EN(SCI)
HOCHIKI ALN-EN
