CHICAGO PNEUMATIC氣動馬達2H410-150-ATEX技術參數
Technical Specifications | |
Air consumption at load | 17 l/s |
Air flow max power | 17 l/s |
Air inlet thread size (in) | 1/4 |
Air inlet thread type | BSP |
Max dynamic air working pressure | 6.3 bar |
Min hose diam (16 ft hose length) | 0.5 in |
Min hose diam (5 m hose length) | 12 mm |
Speed | |
Max free speed range | 150 rpm |
Torque | |
Minimum starting torque | 102 Nm |
Torque at max power | 102 Nm |
Power & Battery | |
Max output power | 0.7 kW |
Design & Functions | |
Back Head Coaxial | No |
Front nut threaded | No |
Main Material type | Steel |
Motor Lubrication free | No |
Rotation drive | Reversible |
Spindle type | Hexagonal |
Starting system | None |
Size & Weight | |
Weight | 2 kg |

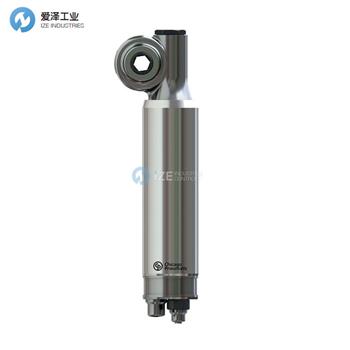

CHICAGO PNEUMATIC氣動馬達2H410-150-ATEX產品介紹
標準氣動葉片馬達 2H410-150-ATEX 設計緊湊，重量輕，具有六角軸主軸。適用于手持式機器或任何工業設備的制造。這款可逆空氣馬達最大輸出功率為660瓦（0.89馬力），最大扭矩為204牛米（75.2英尺磅），空轉速度為150轉/分鐘。
The standard pneumatic vane motors 2H410-150-ATEX is compact in design, light in weight, have Hexagonal shaft spindle It is suitable for building using handheld machines or any industrial equipment. This reversible air motor delivers a maximum power of 660 W (0.89 hp), with a maximum torque of 204 Nm (75.2 ft.lbs) and 150 rpm free speed.
CHICAGO PNEUMATIC氣動馬達其他常用型號：
CHICAGO PNEUMATIC 2H410-90-ATEX 2051473224
CHICAGO PNEUMATIC 2H410-500-ATEX 2051473194
CHICAGO PNEUMATIC 2H410-350-ATEX 2051473204
CHICAGO PNEUMATIC 2H410-150-ATEX 2051473214
CHICAGO PNEUMATIC 2H410-60-ATEX 2051473234
CHICAGO PNEUMATIC AIR MOTORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CHICAGO PNEUMATIC氣動馬達2H410-150-ATEX的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CHICAGO PNEUMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.aalatcr.cn.
