RITTAL冷卻裝置SK3304600技術參數
Product description | |
Article number: | SK 3304.600 |
Design | wall-mounted |
Product description | Energy-efficient Blue e wall-mounted cooling units in the output categories 300 W to 4000 W and with integral electrical condensate evaporator (from 1000 W). |
Benefits | May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller |
Material | Stainless steel 1.4301 (AISI 304) |
Colour | RAL 9007 |
Supply includes | Condenser with hydrophobic RiNano coating |
Total cooling output to DIN EN 14511 | Cooling output L35 L35/50 Hz: 1.1 kW |
Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
Rated current max. | At 50 Hz: 3.9 A |
Start-up current max. | At 50 Hz: 12 A |
Air throughput (unimpeded air flow) | External circuit: 805 m3/h |
Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Refrigeration factor L35 L35 (EER) 50 Hz: 1.83 |
Design | wall-mounted |
Dimensions | Width: 400 mm |
Protection category to IEC 60 529 | External circuit IP 34 |
Protection category NEMA | UL Type 12 |
Refrigerant/cooling medium | Refrigerant: R134a |
Temperature control | e-Comfort controller (factory setting +35 °C) |
Operating temperature range | 10 °C...55 °C |
Storage temperature range | -40 °C...70 °C |
Setting range | 20 °C...55 °C |
Power consumption Pel | Power consumption L35 L35/50 Hz: 0.6 kW |
Permissible operating pressure (p. max.) | 28 bar |
Pre-fuse | Miniature circuit-breaker/fuse: 10 A |
Note on Model No. | Extended delivery times. |
Packs of | 1 pc(s). |
Weight/pack | 39 kg |
Product description | SK cooling unit Blue e, wall-mounted, 1.1 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 400 x 950 x 260 mm |
RITTAL冷卻裝置SK3304600產品介紹

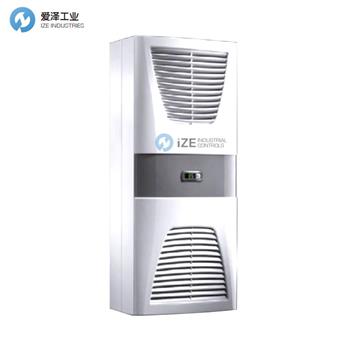

TopTherm 壁掛式冷卻裝置 Blue e 0.3 - 4 kW
商品編號：SK 3304.600
節能型 Blue e 壁掛式冷卻裝置，輸出功率范圍為 300 W 至 4000 W，并配有集成式電氣冷凝水蒸發器（1000 W 以上）。有“臥式”和“平板式”兩種特殊形式。
TopTherm wall-mounted cooling unit Blue e 0.3 - 4 kW
Article number: SK 3304.600
Energy-efficient Blue e wall-mounted cooling units in the output categories 300 W to 4000 W and with integral electrical condensate evaporator (from 1000 W). Available in the special formats "horizontal" and "flat".
RITTAL冷卻裝置其他常用型號：
RITTAL SK3304600
RITTAL SK3302100
RITTAL SK3302110
RITTAL SK3302200
RITTAL SK3302210
RITTAL SK3302300
RITTAL SK3302310
RITTAL SK3303500
RITTAL SK3303510
RITTAL SK3303600
RITTAL SK3303610
RITTAL SK3304500
RITTAL SK3304510
RITTAL SK3304540
RITTAL SK3304610
RITTAL Cooling Unit NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RITTAL冷卻裝置SK3304600的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RITTAL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
