BELIMO執行器NV24A-SZ-TPC技術參數
Technical data | |
Electrical data | |
Nominal voltage | AC/DC 24 V |
Nominal voltage frequency | 50/60 Hz |
Nominal voltage range | AC 19.2...28.8 V / DC 21.6...28.8 V |
Power consumption in operation | 1.5 W |
Power consumption in rest position | 0.5 W |
Power consumption for wire sizing | 3 VA |
Connection supply / control | Terminals with cable 1 m, 4x 0.75 mm2 (Terminal 4 mm2) |
Parallel operation | Yes (note the performance data) |
Functional data | |
Actuating force motor | 1000 N |
Operating range Y | 0.5...10 V |
Input impedance | 100 k? |
Position feedback U | 0.5...10 V |
Position feedback U note | Max. 0.5 mA |
Position accuracy | ±5% |
Manual override | with push-button, can be locked |
Stroke | 20 mm |
Running time motor | 150 s / 20 mm |
Adaptation setting range | manual (automatic on first power-up) |
Sound power level, motor | 45 dB(A) |
Position indication | Mechanical, 5...20 mm stroke |
Safety data | |
Protection class IEC/EN | III, Safety Extra-Low Voltage (SELV) |
Power source UL | Class 2 Supply |
Degree of protection IEC/EN | IP54 |
Degree of protection NEMA/UL | NEMA 2 |
Enclosure | UL Enclosure Type 2 |
EMC | CE according to 2014/30/EU |
Certification IEC/EN | IEC/EN 60730-1 and IEC/EN 60730-2-14 |
Type of action | Type 1 |
Rated impulse voltage supply / control | 0.8 kV |
Pollution degree | 3 |
Ambient humidity | Max. 95% RH, non-condensing |
Ambient temperature | 0...50°C [32...122°F] |
Storage temperature | -40...80°C [-40...176°F] |
Servicing | maintenance-free |
Weight | |
Weight | 1.1 kg |

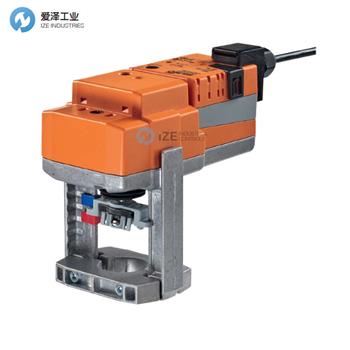

BELIMO執行器NV24A-SZ-TPC產品介紹
用于 2 通和 3 通截止閥的調節截止閥執行器
? 驅動力 1000 N
? 標稱電壓AC/DC 24 V
? 控制調制0.5...10 V
? 行程20毫米
Modulating globe valve actuator for 2-way and 3-way globe valves
? Actuating force 1000 N
? Nominal voltage AC/DC 24 V
? Control modulating 0.5...10 V
? Stroke 20 mm
BELIMO執行器其他常用型號：
NV24A-SZ-TPC
NV24A-MP-TPC
NV24A-MP-RE
NV24A-TPC
NV24A-RE
