NOKEVAL轉換器6580技術參數
Width only 9.5 mm |
Inputs 0…20 mA, 4…20 mA or 0…10 V |
Output 2-wire 4…20 mA |
Operating voltage range 10…34 VDC |
Voltage drop in the input loop 1 V |
Output load 700 ? / 24 V |
Accuracy 0.05 % of the range |
Particularly suitable for isolating analog inputs for Programmable Logic (PLC) |

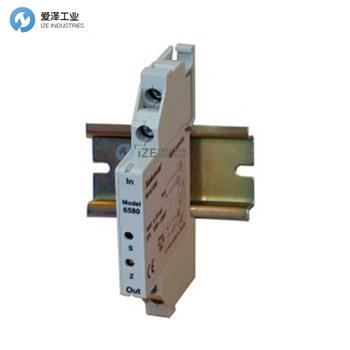

NOKEVAL轉換器6580介紹
Nokeval設計了一種非常纖薄、僅9毫米、帶有電流隔離的2線轉換器。轉換器由輸出2線回路供電。它特別適合隔離可編程邏輯的模擬輸入，因為那些提供電源和接線很簡單。將電源連接到輸出側的想法消除了傳統隔離器的典型問題，如輸出負載小和輸入側壓降高。三種輸入類型可用：0..20和4..20 mA或0..10V，輸出始終為4..20毫安。輸出負載為700歐姆，采用24 VDC電源?？梢酝ㄟ^提高輸出環路電壓來增加輸出負載。輸入電壓降，僅1V，可將多個設備連接到同一輸入回路。轉換器交付時已校準至滿量程的0.05 %精度。前蓋有零位和跨度電位器，用于最終重新校準。標準6580的阻尼為10 ms。
Nokeval has designed a very slim, 9 mm only, 2-wire converter with calvanic isolation. Converter is powered by output 2-wire loop. It is specially suited to isolate analog inputs of programmable logics because those supply the power and wiring is simple.' The idea of connecting power supply to output side eliminates typical problems of conventional isolators like small output load and high input side voltage drop.Three input types are available: 0..20 and 4..20 mA or 0..10V, output is always 4..20 mA. Output load is 700 ohm by 24 VDC power supply. You can increase output load by rising output loop voltage. Input voltage drop, 1 V only, enables connection of several devices to same input loop. Converter is delivered calibrated to 0.05 % accuracy of full scale.Front cover has zero and span potentiometers for eventually recalibration. The damping of standard 6580 is 10 ms.
NOKEVAL轉換器6580其他常用型號：
NOKEVAL 6580-4/20mA
NOKEVAL 6580-0/20mA
NOKEVAL 6580-0/10V
NOKEVAL converter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售于一體，代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NOKEVAL轉換器6580-4/20mA的疑問，請隨時致電我們，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
If you have any question for NOKEVAL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.
NOKEVAL轉換器6580-4/20mA技術參數及介紹
