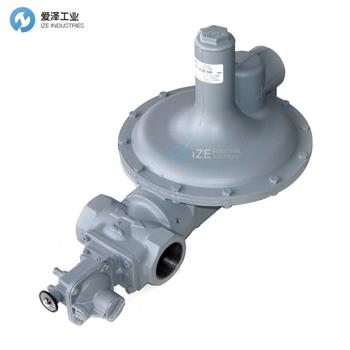

JEAVONS調壓器J125-S1技術參數
SIZES | 1?" x 1?", 2" x 2" and 50mm x 50mm. |
TEMPERATURE | -20°C to +70°C. |
CONNECTIONS | Taper or parallel screwed to BS21 Flanged to DIN, BS EN 1092-2 NP16 Other standards may be available upon request. |
APPROVAL | The 1?” and 2” J125 have been approved to Modulus B + D of the PED 97/23/EC by BSI (Notified Body No. 0086). It is classified as Category IV equipment and a pressure accessory. |
JEAVONS調壓器J125-S1產品介紹
The J125 series provides a full range of regulators for service applications where accurate pressure control is required. The units are ideal for industrial pressure reducing, metering stations and for district distribution. A monitor version of the J125 is also available. The regulators are designed to maintain high accuracy and efficiency over the inlet pressures up to 8.6 Bar (125 PSIG). Available with screwed connections, sizes 1?” and 2”, and 50mm flanged connections.
Several valve orifices are available to cover the full inlet pressure range, together with a comprehensive number of outlet pressure springs.
The unit has been designed for ease of installation and servicing in confined areas. The diaphragm case can be fully rotated and, during inspection and servicing, the case can be removed without disturbing the pipework. All units are suitable for operation on natural, liquefied petroleum and manufactured gases.
OPTIONS
The J125 can be fitted with a full or limited capacity relief valve. In addition, the regulator can be supplied with the Jeavons Universal Safety Shut-off Assembly (USSA). This provides overpressure and/or underpressure protection with immediate shut-off at the regulator inlet. It uses well proven principles to give exceptional consistency of operation and an unrivalled insensitivity to nuisance tripping. The J125 is also available for use in a monitor application.
J125系列為需要精確壓力控制的服務應用提供了全系列的調節器。該設備是工業減壓，計量站和區域分配的理想選擇。還提供J125的顯示器版本。調節器旨在在高達8.6 Bar（125 PSIG）的入口壓力下保持高精度和高效率。提供螺紋連接，尺寸為1?”和2”，以及50mm法蘭連接。
有幾個閥孔可用來覆蓋整個入口壓力范圍，同時還有大量的出口壓力彈簧。
該裝置的設計易于在狹窄區域內安裝和維修。隔膜盒可以完全旋轉，并且在檢查和維修期間，可以在不影響管路的情況下將其卸下。所有裝置均適用于天然，液化石油氣和人造氣體。
選項
J125可以安裝滿載或限載安全閥。此外，可以為Jeavons通用安全切斷組件（USSA）提供調節器。這提供了過壓和/或欠壓保護，并在調節器入口處立即關閉。它采用了久經考驗的原理，可提供出色的操作一致性，并且對跳閘不敏感。 J125也可用于監視器應用程序。
JEAVONS調壓器其他常用型號：
JEAVONS J125-S1
JEAVONS J125-S2
JEAVONS J125-S3
JEAVONS J125-S4
JEAVONS J125-S5
JEAVONS J125-S6
JEAVONS J125-S7
JEAVONS J125-S8
JEAVONS J125-S9
JEAVONS J125-S10
JEAVONS J125-S11
JEAVONS J125-S12
JEAVONS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于JEAVONS調壓器J125-S1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for JEAVONS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.
