HYDAC閥SAF系列技術參數
SPECIFICATIONS | |
Operating fluids | Mineral oil to DIN 51524 Part 1 and Part 2 (other fluids on request) |
Viscosity range | min. 10 mm2/s max. 380 mm2/s |
Filtration | Max. permitted contamination level of the operating fluid to ISO 4406 Class 21/19/16 or SAE AS 4059 Class 11.We recommend a filter with a minimum retention rate of ?20 ≥ 100.The fitting of filters and regular replacement of the filters guarantees correct operation, reduces wear and extends the service life. |
Permitted operating temperature | Standard design -10 °C ... +80 °C (ambient temperature for E type limited to -10 °C ... +60 °C) Low-temperature version -40 °C ... +80 °C |
Max. operating pressure | 400 bar |
Model with solenoid-operated pressure release | Solenoid-operated by means of pressure-tight, oil-immersed, |
Type of voltage | DC solenoid When connected to AC voltage, the necessary DC voltage is produced by means of a bridge rectifier connector. Voltage tolerance |
Nominal current | Dependent on the nominal voltage |
Power consumption | p20 = 18 W |
Switching time | This depends on the symbol, pressure at the individual connections and the flow rate |
HYDAC閥SAF系列介紹
HYDAC 安全截止閥塊是一種液壓附件元件，用于防止流體側壓力過高，并關閉和釋放液壓蓄能器的壓力。
HYDAC 泄壓閥 (DB12) 用于 SAF 系列。它是一種采用錐閥結構的直動式泄壓閥，具有出色的開啟和關閉特性。此版本的 DB12 符合歐洲壓力設備指令 (PED) 的要求，帶有 CE 標志，并隨附符合性聲明和操作說明。

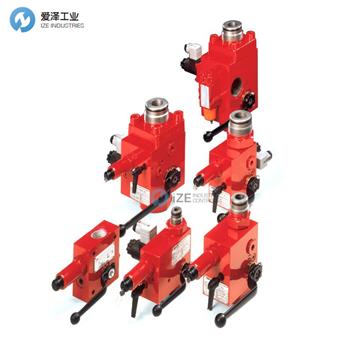

The HYDAC safety and shut-off block is a hydraulic accessory element that is used to protect against excess pressure on the fluid side and to shut-off and relieve hydraulic accumulators.
The HYDAC pressure relief valve (DB12) is used in the SAF series. It is a direct-acting pressure relief valve in a poppet valve construction with excellent opening and closing characteristics. This version of the DB12 complies with the requirements of the European
Pressure Equipment Directive (PED) with CE marking and is supplied with a declaration of conformity and operating instructions.

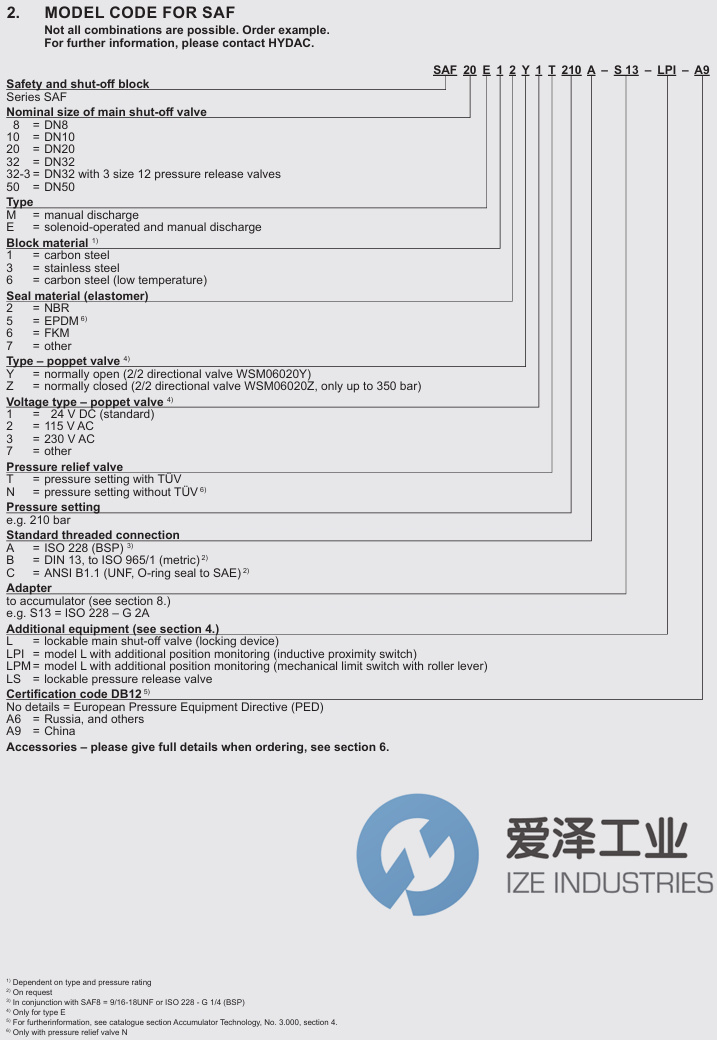

HYDAC閥SAF系列選型
HYDAC閥SAF系列其他常用型號：
HYDAC SAF32M12N210A-S309
HYDAC SAF32M12N330A-S309
HYDAC SAF32M12T200A-S309
HYDAC SAF32M12T400A
HYDAC SAF32M12T350A
HYDAC SAF32M12T315A
HYDAC SAF32M12T300A
HYDAC SAF32M12T250A
HYDAC SAF32M12T200A
HYDAC SAF32M12T150A
HYDAC SAF32M12T100A
HYDAC SAF32M12T070A
HYDAC SAF32M12T050A
HYDAC SAF32M12T035A
HYDAC VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDA閥SAF32M12N210A-S309的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.aalatcr.cn.
HYDAC閥SAF系列SAF32M12N210A-S309技術參數及介紹
