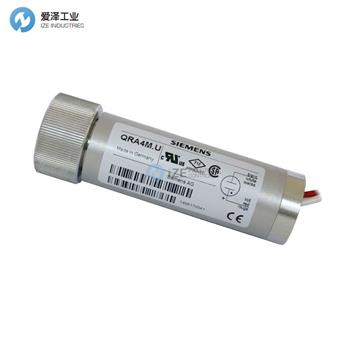

SIEMENS火焰檢測器QRA4系列技術參數
Technical data | |
General detector data | |
Average life of UV cell | Approx. 10,000 hours at max. +50 °C, higher ambient temperatures reduce considerably the cell’s life |
Perm. combustion chamber pressure | Max. 150 mbar |
Degree of protection | IP54 (to be ensured through mounting) |
Mounting position | Optional |
Weight | Approx. 180 g |
Device safety class | II (double-insulated) |
Length of connecting wires | |
- QRA4... | Approx. 180 g |
- AGG02 | Approx. 10 g |
- AGG04 | Approx. 270 g |
- AGG15 | Approx. 100 g |
Conduit for protective sleeve (Menzel sleeve) | ?“-14NPSM thread |
Environmental conditions | |
Storage | IEC 60721-3-1 |
Climatic conditions | Class 1QRA43 |
Mechanical conditions | Class 1M2 |
Temperature range | -20...60 °C |
Humidity | <95% r.h. |
Transport | IEC 60721-3-2 |
Climatic conditions | Class 2QRA43 |
Mechanical conditions | Class 2M2 |
Temperature range | -20...60 °C |
Humidity | <95% r.h. |
Operation | IEC 60721-3-3 |
Climatic conditions | Class 3QRA45 |
Mechanical conditions | Class 3M5 |
Temperature range | -20...60 °C |
Humidity | <95% r.h. |
Installation altitude | Max. 2,000 m above sea level |
SIEMENS火焰檢測器QRA4系列介紹
UV flame detector for use with burner controls from Siemens for the supervision of gas or oil flames.
The QRA4... and this Data Sheet are intended for use by OEMs which integrate the flame detectors in their products.
UV火焰檢測器，與西門子的燃燒器控件配合使用，用于監視氣體或燃油火焰。
QRA4 ...和此數據表旨在供將火焰探測器集成到其產品中的OEM使用。
SIEMENS火焰檢測器QRA4系列其他常用型號：
SIEMENS RAR9
SIEMENS QRA53.E17
SIEMENS QRA53.E27
SIEMENS QRA53.G17
SIEMENS QRA53.G27
SIEMENS QRA55.E17
SIEMENS QRA55.E27
SIEMENS QRA55.G17
SIEMENS QRA55.G27
SIEMENS QRA10.C
SIEMENS QRA10M.C
SIEMENS QRA2
SIEMENS QRA2M
SIEMENS QRA4.U
SIEMENS Flame detector NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SIEMENS火焰檢測器QRA4.U的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for SIEMENS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.aalatcr.cn.
SIEMENS火焰檢測器QRA4系列QRA4.U技術參數及介紹
