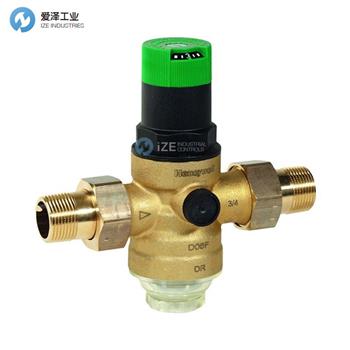

RESIDEO減壓閥D06F-2B技術參數
Specifications | |
Approvals and Standards | DVGW, WRAS (up to 23 °C) |
Connection Size | 2 in, DN50 |
Connection Type | External Thread, Connection set |
Filter Mesh Size | 0.16 mm |
Inlet Pressure (Max) | 25 bar |
Media Temperature (Max) | 70°C |
Outlet Pressure (Max) | 6 bar |
Outlet Pressure (Min) | 1.5 bar |
Preset Outlet Pressure | 3 bar |
Product Height | 299 mm |
Product Weight | 4.5 kg |
Valve Body Material | Brass, Dezincification Resistant |
DN Size | 50 mm |
Controlled Media | Drinking Water |
Pressure Drop (Min) | 1 bar |
RESIDEO減壓閥D06F系列介紹
Product overview
According EN 806-2 pressure reducing valves of this type protect household water installations against excessive pressure from the supply. They can also be used for industrial or commercial applications within the range of their specification. By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.
Inlet pressure balancing - no influence on outlet pressure by fluctuating inlet pressure
Up to size 1 1/4 in approved by LGA for low noise, Group 1 without limitations
The valve insert is of high quality synthetic material and can be fully exchanged
The outlet pressure is set by turning the adjustment knob
The set pressure is directly indicated on the set point scale
The adjustment spring is not in contact with the drinking water
Integral fine filter
Also available without fittings
Conforms to BSEN 1567
All materials are UBA conform
All materials are ACS approved
產品概覽
根據 EN 806-2，此類減壓閥可保護家用供水裝置免受供水壓力過大的影響。它們還可用于其規格范圍內的工業或商業應用。通過安裝減壓閥，可以避免加壓損壞并減少用水量。即使入口壓力波動很大，設定壓力也能保持恒定。降低工作壓力并將其保持在恒定水平可最大限度地減少安裝中的流動噪音。
入口壓力平衡 - 入口壓力波動不會影響出口壓力
最大 1 1/4 英寸尺寸經 LGA 批準用于低噪聲，第1組無限制
閥芯采用優質合成材料，可完全更換
出口壓力通過旋轉調節旋鈕來設置
設定壓力直接顯示在設定點刻度上
調節彈簧不接觸飲用水
一體式精細過濾器
也可不帶配件
符合BSEN 1567
所有材料均符合UBA
所有材料均通過ACS認證
RESIDEO減壓閥D06F系列其他常用型號：
RESIDEO D06F-1/2B
RESIDEO D06F-3/4B
RESIDEO D06F-1B
RESIDEO D06F-11/4B
RESIDEO D06F-11/2B
RESIDEO D06F-2B
RESIDEO D06F-1/2A
RESIDEO D06F-3/4A
RESIDEO D06F-11/4A
RESIDEO D06F-11/2A
RESIDEO D06F-2A
