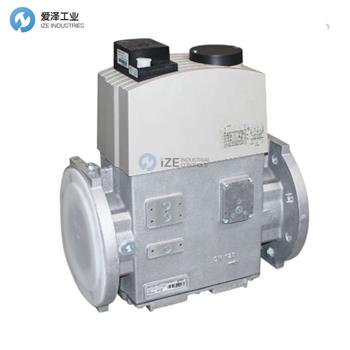

DUNGS電磁閥DMV系列技術參數
Solenoid vertically upright to lying horizontally | |
Nominal diameters | DN 65 80 100 125 |
Flange | Connection flange as per DIN 2501 Part 1, to fit preweld flanges as per |
Nominal diameters | DMV 525/11 eco |
Flange with pipe thread as per ISO 7-1 | Rp 2 |
Max. operating pressure | 500 mbar (50 kPa) |
Solenoid valve V1 | Automatic shut-off valve as per EN 161: Class A, Group 2 |
Solenoid valve V2 | Automatic shut-off valve as per EN 161: Class A, Group 2 |
Closing time | < 1 s |
Opening time | DMV.../11 eco, DMV-D…/11 eco: < 1 s |
Main valve restrictor | Adjustable (DMV-D.../11 eco, DMV-DLE.../11 eco) |
Materials of gas conveying parts | Housing: aluminium, steel, no non-ferrous metals |
Ambient temperature | NBR: -15 °C to +60 °C |
Installation position | Solenoid vertically upright to lying horizontally |
Dirt trap | Sieve installed. To protect the complete gas train we recommend you to install a suitable gas filter (refer to Datasheet 11.02) |
Measuring gas connection | G 1/4 DIN ISO 228 centrally upstream of V1 and downstream of V2 (not 525/11 eco) |
Ignition gas connection | G 3/4 ignition gas flange as per ISO 228, possible on both sides between V1 and V2 |
Voltage/frequency | 50 - 60 Hz, 230 V AC, -15% +10%, further voltages on request |
Degree of protection / switch-on duration | IP 54 / 100 % |
Electrical connection | Plug-in connection as per DIN EN 175301-803 |
Radio interference | Degree of interference N |
Closed position signal contact | Type K01/1 (DIN tested), can be mounted on V1 and V2 |
DUNGS電磁閥DMV系列介紹
- 自動截止閥符合 DIN EN 161 A 級 2 組標準。
- 一個外殼內有兩個 A 閥
- 雙座閥
- 高流速
- 最大工作壓力高達 0.5 bar (50 kPa)
- 快速關閉
- 快速打開（DMV/11 eco、DMV-D/11 eco）
- 主音量可調節（DMV-D/11 eco、DMV-DLE/11 eco）
- 直流電磁鐵
- 通過電源切換實現低功耗
- 可安裝的閉合位置信號觸點
- 結構緊湊、重量輕
- Automatic shut-off valves as per DIN EN 161 Class A Group 2.
- Two A valves in one housing
- Double seat valves
- High flow rates
- Max. operating pressure up to 0.5 bar (50 kPa)
- Fast closing
- Fast opening (DMV/11 eco, DMV-D/11 eco)
- Adjustable main volume (DMV-D/11 eco, DMV-DLE/11 eco)
- DC solenoid
- Low electric power consumption through power switching
- Mountable closed position signal contact
- Compact, light-weight
DUNGS電磁閥DMV系列其他常用型號：
DUNGS DMV 525/11 eco 256 139
DUNGS DMV 5065/11 eco 256 293
DUNGS DMV 5080/11 eco 256 356
DUNGS DMV 5100/11 eco 249 774
DUNGS DMV 5125/11 eco 250 465
DUNGS DMV5125/11 250365
DUNGS DMV-D 525/11 eco 256 151
DUNGS DMV-D 5065/11 eco 256 296
DUNGS DMV-D 5080/11 eco 256 357
DUNGS DMV-D 5100/11 eco 253 459
DUNGS DMV-D 5125/11 eco 253 461
DUNGS DMV-DLE 525/11 eco 256 172
DUNGS DMV-DLE 5065/11 eco 256 297
DUNGS DMV-DLE 5080/11 eco 256 358
DUNGS DMV-DLE 5100/11 eco 256 458
DUNGS DMV-DLE 5125/11 eco 256 459
