CORTALK數據記錄儀UDL2規格描述
SPECIFICATIONS | |
ENVIRONMENTAL | |
Operating Temperature | -20° to +60° C (-4° to +140° F) |
Storage Temperature | -40° to +70° C (-40° to +158° F) |
Maximum Altitude | 5000 meters above sea level |
Humidity | 0 to 100% RH non-condensing |
PHYSICAL + POWER | |
Weight | 75 grams (2.7 oz) |
Size | 89mm x 40mm x 18mm (3.5” x 1.6” x 0.72”) |
Power Source | Rechargeable Internal Li-Ion (Not user replaceable) |
CORTALK數據記錄儀UDL2介紹

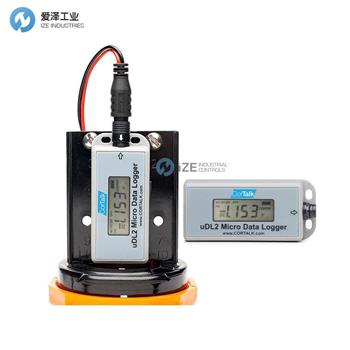

Tiny, yet highly capable, the CorTalk uDL2 provides comprehensive data measurement and logging of coupon status in CP systems. The device provides reliable, accurate measurement of AC current density, coupon DC current, a range of potential measurements and more. The device’s rechargeable battery provides up to four months of service and up to 2,000,000 readings on a single charge.
Periodic field surveys of cathodic protection systems can’t identify frequent, short-term events that can seriously impact pipeline integrity. MOBILTEX data loggers solve this challenge with pocket-sized, highly accurate devices that are designed to be quickly installed inside rectifiers and test stations to measure and record critical performance parameters from the Cathodic Protection system.
Each device offers a wide range of configurable settings that includes sample rate, current measurement ranges, time, geo-location and more. A tough enclosure, combined with durable components provides reliable operation in the harshest of operating conditions, while a long-lasting rechargeable battery ensures months of operation.
BENEFITS
Compact units fit inside most standard CP test stations
Internal rechargeable batteries provide up to six months of continuous operation
LCD display for local measurement monitoring
Up to 2,000,000 readings and a DC voltage waveform capture mode which samples at rate of 10 times per second
Fast, simple device configuration, data retrieval and charging via USB
Lightning and surge protection, IP65 rated with broad operating temperature range ( -20°C to +60°C [ -4°F to +140°F ] )
CorTalk uDL2 體積小巧但功能強大，可在 CP 系統中提供全面的數據測量和試樣狀態記錄。該設備提供對交流電流密度、試樣直流電流、一系列電位測量等的可靠、準確的測量。該設備的可充電電池一次充電可提供長達四個月的服務和多達 2,000,000 個讀數。
陰極保護系統的定期現場調查無法識別可能嚴重影響管道完整性的頻繁、短期事件。 MOBILTEX 數據記錄器通過袖珍型、高精度設備解決了這一挑戰，這些設備旨在快速安裝在整流器和測試站內，以測量和記錄陰極保護系統的關鍵性能參數。
每個設備都提供廣泛的可配置設置，包括采樣率、當前測量范圍、時間、地理位置等。堅固的外殼與耐用的組件相結合，可在最惡劣的操作條件下可靠運行，而持久耐用的可充電電池可確保運行數月。
特點
緊湊型裝置適合大多數標準 CP 測試站
內部可充電電池可提供長達六個月的連續運行
用于本地測量監控的 LCD 顯示屏
多達 2,000,000 個讀數和直流電壓波形捕獲模式，以每秒 10 次的速率進行采樣
通過 USB 進行快速、簡單的設備配置、數據檢索和充電
雷電和浪涌保護，IP65 等級，工作溫度范圍廣（-20°C 至 +60°C [-4°F 至 +140°F]）
