MICROSENS交換機MS657208X技術參數
Gigabit Bridge | |
Type | Gigabit Ethernet Switch Layer 2, IEEE 802.3 compliant |
Switching Fabric | 16Gbps |
Data Processing | Store-and-forward |
MAC Table | 8K |
Packet Buffer | 1MB |
Jumbo Frames | max. 9 kBytes |
MTBF | 510.304 Hours (MIL-HDBK217F) at 25°C |
Power supply (DC-Voltage) | |
Input | 12..56 V DC (redundant) |
Powerbudget | 200 W (MS657208PX) |
Power consumption | Typ. 5,8 W (without PoE) |
Grounding (PE) | Screw |
Connection | P1 +/-, P2 +/- red. |
Alarm contact | 1 A / 24 V max. |
Environment | |
Operation | -40..+75 °C |
Humidity | 5 ..95%, non condensing |
Storage | -40..+85 °C |
Mechanical | |
Dimensions incl.DIN-Adapter | 36,2 x 105 x 142 mm (L x W x H, without connections) |
Mounting | DIN-ISO support rail (35mm) to DIN EN 50022 or wall mounting |
Housing protection class | IP30 (Metal Housing) |
MICROSENS交換機MS657208X產品介紹
8 端口工業千兆交換機，8x 10/100/1000Base-T
擴展溫度范圍 -40..+75°C
工業千兆交換機，2x 12..56 V DC 冗余

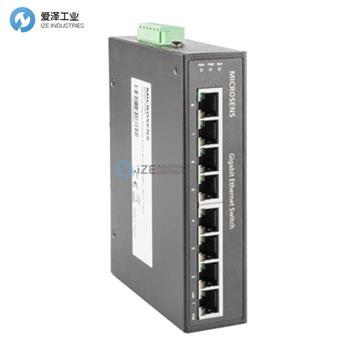

8-Port Industrial Gigabit Switch, 8x 10/100/1000Base-T
Extended temperature range -40..+75°C
Industrial Gigabit Switch, 2x 12..56 V DC redundant
MICROSENS交換機其他常用型號：
MICROSENS MS657208X
MICROSENS MS657208PX
MICROSENS MS657099X
MICROSENS MS657099PX
MICROSENS MS657203X
MICROSENS MS657203PX
MICROSENS SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MICROSENS交換機MS657208X的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MICROSENS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.aalatcr.cn.
MICROSENS交換機MS657208X技術參數介紹
