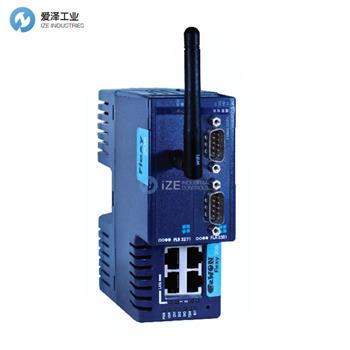

EWON網關FLEXY20500參數介紹
Gateway IIOT e Router per l'accesso remoto | |
Switch | Switch configurabile per LAN/WAN; 4 x 10/100Mb |
Lettore scheda SD | Sì |
Ingresso/Uscita | 2 x DI, 1 x DO |
Registrazione dati storici | 1 milione di punti dati con time-stamped |
Alimentazione | 12-24 VDC +/-20%, LPS |
Intervallo di temperatura | Da -25 °C a +70 °C |
Garanzia | 36 mesi |
Codice prodotto | Flexy205 |
EWON網關FLEXY20500_00MA描述
借助可配置的WAN/LAN交換機，該網關提供了廣泛的擴展卡，最適合您的應用，非常適合數據密集型應用。 無論您的要求是：創建警報，監視儀表板，收集數據以進行機器性能分析，甚至是其他高級解決方案，F(xiàn)lexy 205都可以滿足需求并擴展可能性。
與Flexy系列的其他路由器一樣，F(xiàn)lexy 205具有基于Web的配置和內置的腳本工具，可以進行自定義。
通過使用Talk2M API，HTTPs腳本或MQTT腳本，可以輕松地與您喜歡的IIoT平臺集成。 Flexy 205的靈活性和耐用性為Machines Builders提供了廣泛的增值服務。
介紹
?具有大多數PLC協議的IIoT網關
?靈活的WAN接口：以太網，4G，3G，WiFi
?高性能的數據處理
?數據記錄和警報通知
?OPC UA和Modbus服務器
?緊湊而堅固的設計，是電氣柜的理想選擇
?易于通過嵌入式網頁進行設置
?MQTT腳本可與IIoT平臺連接
?SD卡已準備就緒，易于調試
典型應用
? 通過IIoT平臺進行遠程數據收集
? 遠程監控
? 遠程訪問
With a configurable WAN/LAN switch, this gateway offers a wide range of extension cards to best fit your application and is perfect for data-intensive applications. Whether your requirements are to: create alarms, monitor dashboards, collect data for machine performance analysis, or even other advanced solutions, the Flexy 205 will meet your needs and expand your possibilities.
Like other routers from the Flexy family, the Flexy 205 has a web-based configuration and built-in scripting tools for customization.
Through the use of our Talk2M APIs, HTTPs scripting, or MQTT scripting, enable easy integration with your favorite IIoT platform. The flexibility and robustness of the Flexy 205 guarantees a wide array of value-add services for Machines Builders.
Highlights
IIoT gateway with most PLC protocols
Flexible WAN interface: Ethernet, 4G,3G, WiFi
High performance for data processing
Data logging and alarm notification
OPC UA & Modbus server
Compact and robust design, ideal for electrical cabinet
Easy to set up through embedded web pages
MQTT scripting to connect with IIoT Platforms
SD card ready for easy commissioning
Typical Applications
Remote Data Collection with IIoT platforms
Remote Monitoring
Remote Access
EWON接口模塊FLEXY系列其他常見型號：
EWON Flexy100
EWON Flexy101
EWON Flexy102
EWON Flexy103
EWON FLEXY205
EWON FLEXY20500_00MA
EWON Flexy202
EWON Flexy203
EWON Interface module NEW + ORIGINAL+ ONE YEAR WARRANTY
