AFL光纖MMF-50-4-CP-125-4規格描述
Specifications | |
PART NO. | MMF-50-4-CP-125-4 |
Description | 50/125/155 μm Carbon/Polyimide coated, Graded Index Multimode Fiber |
PARAMETER | VALUE |
Material | |
Hermetic | Carbon |
Coating | Polyimide |
Geometry | |
Core Diameter (um) | 50 ± 2.5 |
Clad Diameter (μm) | 125 ± 2 |
Core Non-Circularity (%) | ≤ 5 |
Clad Non-Circularity (%) | ≤ 1 |
Core/Clad Offset (μm) | ≤ 1.5 |
Coating Diameter (μm) | 155 ± 5 |
Polyimide Coating Concentricity' | ≥ 80 |
Optical | |
NA (nominal) | 0.2 |
Attenuation2 @ 850 nm (dB/km) | ≤ 3.0 |
Attenuation? @ 1300 nm (dB/km) | ≤ 1.2 |
Bandwidth @ 850 nm (MHz-km) | ≥ 300 |
Bandwidth @ 1300 nm (MHz-km) | ≥ 300 |
Mechanical | |
Proof Test (kpsi) | ≥ 100 |
Operating Temperature (°C) | -65 to +300 |
AFL光纖VHM5000 系列介紹

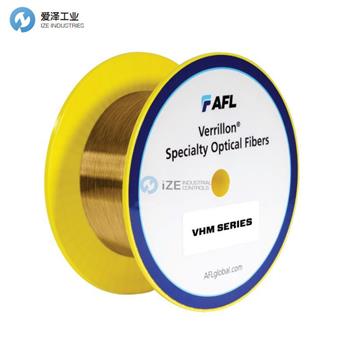

VHM5000 系列光纖
Verrillon? AFL 的嚴苛環境光纖提供多種設計。VHM5000 產品是一款多模級別折射率光纖，采用優化的玻璃化學配方，具有高度抗氫氣暗影的性能。VHM5000 系列提供多種涂層和涂層組合，包括聚酰亞胺、高溫丙烯酸酯、硅膠-PFA 和密封碳層。通常，這些光纖應用于井下數據記錄、分布式感測和成像等場合，尤其是在溫度和氫氣分壓極端的環境中。
Verrillon 涂層光纖相比商用光纖具有極高的密封性能（Hermeticity）。提供大量數據以展示光纖的性能。此外，還提供一站式解決方案，滿足客戶對多束光纜密封光纖的需求（如金屬套管管道）。
特點：
在高溫高壓環境中對氫氣的玻璃抗性行業內最佳
根據應用需求提供多種保護涂層選擇
適用于高壓、高溫及腐蝕性環境
碳涂層提供優異的抗H2及水分侵入性能
在典型運行條件下，密封光纖的預期使用壽命超過大多數要求
附帶大量關于“嚴苛環境”下光纖性能的測試和測量數據
VHM5000 Series Fibers
Verrillon? Harsh Environment Fibers from AFL are available in a wealth of designs. The VHM5000 product is a multimode graded-index optical fiber with optimized glass chemistry for high resistance to hydrogen darkening. VHM5000 Series is available with coatings and Coating combinations, including Polyimide, high temperature acrylates, Silicone-PFA and hermetic Carbon. Typically, these fibers are used in down-hole data logging, distributed sensing and Imaging applications where the temperature and hydrogen partial pressures are extreme.
Verrillon coated fibers provide exceptionally high levels of hermeticity compared to Commercial fibers. We provide extensive data that demonstrates the performance of our fiber. In addition, we provide one-stop shopping for customers requiring multi-count cabled hermetic fibers, if required, in metal jacketing tubes.
Features
Best glass resistance to hydrogen at high temperatures and pressures in the entire industry
Wide range of protective coatings available, depending on application requirements
Suitable for use in high pressure, high temperature and corrosive environments
Carbon coating provides exceptional resistance to H2 and moisture ingression
Predicted lifetime for hermetic fiber under typical operating conditions exceeds most requirements
Extensive test and measurement data for optical fiber performance under "harsh conditions" provided with fiber
AFL光纖其他常見型號：
AFL MMF-50-4-P-125-4
AFL MMF-50-4-CP-125-2
AFL MMF-50-4-CP-125-3
AFL MMF-50-4-CP-125-4
AFL MMF-50-4-CSPFA-125-1
AFL MMF-50-4-CSPFA-125-5
AFL MMF-50-4-CSPFA-125-6
AFL MMF-50-4-CSPFA-125-7
AFL optical fiber NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AFL光纖MMF-50-4-CP-125-4的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AFL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.aalatcr.cn.
