REXROTH控制器VT-MAC8系列技術參數
Technical data | |
Operating voltage | UB 18 to 36 VDC / max 3.6 A |
Current consumption | Master without axis 500 mA |
Processor | MPC860 and MPC555 |
Memory | 16 MB SDRAM, 16 MB Flash, 8 KByte DPR |
Analog inputs: | |
Voltage inputs (differential inputs) | ±10 V, 12 bits with 4-fold oversampling |
Current inputs | ? Input current / input resistance |
Analog outputs: | |
Voltage outputs | ? Output voltage Unom ±10 V PWM (pulse width modulation) |
Current outputs | ? Output current normalized I nom ±20 mA |
Serial interfaces | Standard RS232 (V 24) (19.2 KBaud) |
Switching inputs | Quantity 32 |
Switching outputs | Quantity 24 |
Admissible operating temperature range | 0 to 50 °C |
Storage temperature range | –20 to 70 °C |
REXROTH控制器VT-MAC8系列介紹
? MAC8 是模塊化設計的數字力士樂多軸 NC 控制。
? 它由一個2 個或 4 個軸控制器的主卡組成，如有必要，可以擴展至多達 7 個用于每個 4 個軸的從卡。
? 因此，它是具有多達 32 個插補軸的復雜控制任務的解決方案。
? 使用本地以太網，可以連接更多的 MAC8。
? MAC8 通過現場總線（PROFIBUS DP 或 CAN）或以太網與高級 PLC 機器控制進行通信。
? 它具有特殊的液壓控制特性，能夠以全自動方式控制機器或機器零件的運動，因此也可以接受PLC任務。
? 傳感器和執行器也可以通過 CAN 總線進行分析和/或激活。
? The MAC8 is the digital Rexroth multi-axis NC control in modular design.
? It consists of a master card with no, 2 or 4 axis controllers and can be extended with up to seven slave cards for four axes each, if necessary.
? It is thus the perfect solution for complex control tasks with up to 32 interpolatable axes.
? Using local Ethernet, more MAC8 can be connected.
? The MAC8 communicates with the superior PLC machine control via field bus (PROFIBUS DP or CAN) or via Ethernet.
? It has special hydraulic control characteristics and is able to control the movements of the machine or machine parts in a completely automatic manner and can thus also accept PLC tasks.
? Sensors and actuators can also be analyzed and/or activated via CAN bus.

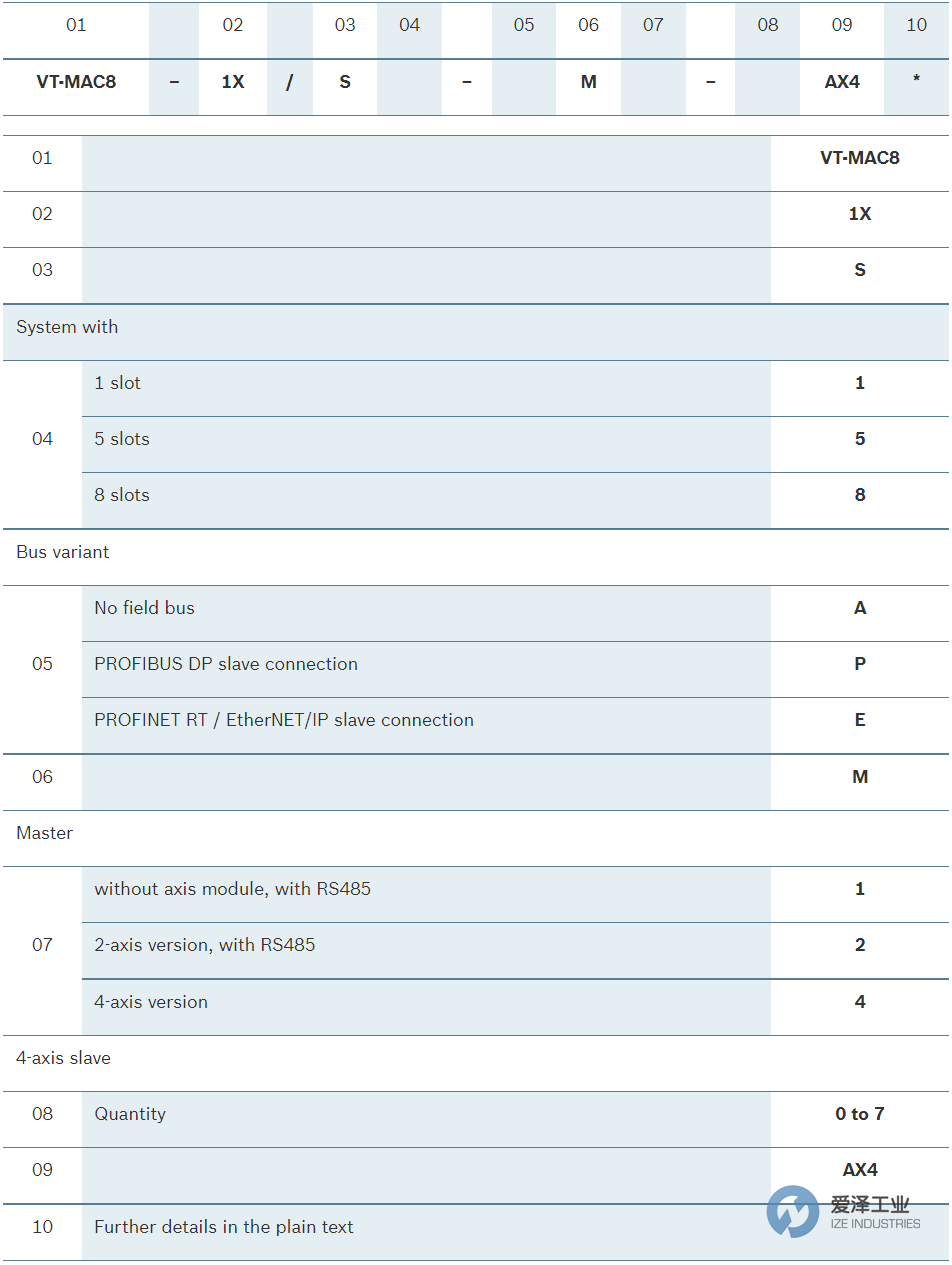

REXROTH控制器VT-MAC8系列選型
REXROTH控制器VT-MAC8系列其他常用型號：
REXROTH VT-MAC8-1X/K-PM2
REXROTH VT-MAC8-1X/K-AM4
REXROTH VT-MAC8-1X/K-AX4
REXROTH VT-MAC8-1X/K-EM4
REXROTH VT-MAC8-1X/K-PM1
REXROTH VT-MAC8-1X/K-PM4
REXROTH VT-MAC8-1X/K-RACK1
REXROTH VT-MAC8-1X/S1-EM4
REXROTH VT-MAC8-1X/S1-PM2
REXROTH VT-MAC8-1X/S1-PM4
REXROTH VT-MAC8-1X/S5-AM4-1AX4
REXROTH VT-MAC8-1X/S5-EM4-1AX4
REXROTH VT-MAC8-1X/S5-EM4-2AX4
REXROTH VT-MAC8-1X/S5-EM4-3AX4
