MECAIR閥VNP206技術參數
MODEL | VNP206 |
PORT SIZE | ?”? |
NO. DIAPH. | 1 |
PRESSURE RANGE | MIN. 0.5 BAR |
WEIGHT | 0.55 KG |
COIL | Yes |
KV | 10 |
CV | 11.6 |

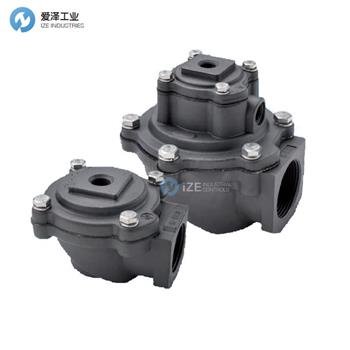

MECAIR閥200系列介紹
200系列是一系列適用于除塵器應用的隔膜閥，尤其適用于濾袋、濾筒、包絡式過濾器、陶瓷過濾器和燒結金屬纖維過濾器的反向脈沖噴射清灰。200系列閥門的進氣口與出氣口成90°角。200系列包含6個型號，尺寸從?″到2?″，均配有內螺紋燃?xì)饨涌凇??″型號提供單隔膜和雙隔膜版本，而2″和2?″均為雙隔膜閥。其特殊設計確保了極快的開啟速度、高流量和易于安裝。閥門采用壓鑄鋁制成，并經過陽極氧化保護處理，可防止腐蝕和環境因素的影響。螺栓和螺釘均采用不銹鋼材質。
The 200 SERIES is a range of diaphragm valves suitable for dust collector applications, in particular for reverse pulse-jet filter cleaning of filter bags, cartridges, envelope filters, ceramic filters and sintered metal fibre filters. The 200 Series valve has the inlet port at 90° to the outlet port. The 200 Series range comprises 6 models, from ?′′ to 2?′′, all with threaded female Gas connections. The 1?′′ model is available in single and double diaphragm versions, while the 2′′ and 2?′′ are all double diaphragm valves. The special design assures an extremely fast opening time, high flow rates and easy installation. The valves are constructed in diecast aluminium and have an anodised protection treatment which protect them from corrosive and environmental agents.Bolts and screws are in stainless steel.

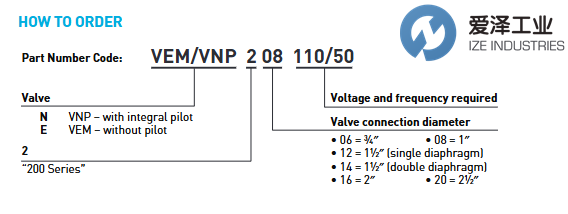

MECAIR閥200系列選型
MECAIR閥200系列其他常用型號：
MECAIR VNP206
MECAIR VNP208
MECAIR VNP212
MECAIR VNP214
MECAIR VNP216
MECAIR VNP220
MECAIR VEM206
MECAIR VEM208
MECAIR VEM212
MECAIR VEM214
MECAIR VEM216
MECAIR VEM220
MECAIR valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MECAIR閥VNP206的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any quesQ3Ton for MECAIR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.aalatcr.cn.
MECAIR閥200系列VNP206技術參數及選型
