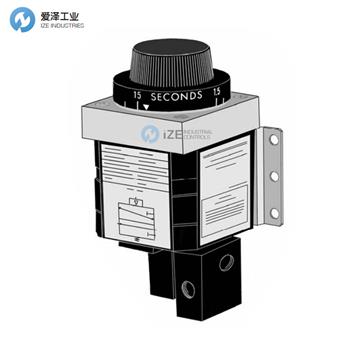

Mount Type

Standard Vertical Surface Mount

Timing Range

6 to 60 min.

Operating Pressure Range

5 to 140 psi

Connections

1/8" NPT ports

Control Pressure

5 to 140 psi

Media

Filtered air or non-aggressive gas, non-lubricated.

Output Valve

Cv - 0.25
Flow at 100 PSI - 9 CFM
Multi purpose 3 way spool

Dial Indicator

Displays set time

Timing Star

On Delay - Application of pilot pressure to control port.

Reset

On Delay - Removal of pilot pressure from control port.

Reset Time

60 ms at 50 psi

Repeatability

Up to 200 sec. - ± 5%
Over 200 sec. - ± 10%

Time Setting

Via dial
Accuracy ± 10% of full scale

Operation

Timing cycle uses atmospheric pressure.

Materials

Diaphragms - Buna N
Zamak Housing
Polycarbonate knob
Aluminum Valve with stainless spool

Operating Ambient

“-30 to 70 oC-20 to 165 oF”

Height

5 1/4 in.

Width

2 1/2 in.

Depth

2 1/2 in.

Mounting

Surface mounted

Drilling Plan (Panel Mount)

3 3/16 in. dia. Hole

Options

Stainless Steel Fitting Mounted
Dial Stop
Tamper Proof Cover

Power Connections

For installations requiring larger output valves, use the standard timer and connect a pneumatically operated single air piloted 3 way or 4 way valve of the size required to the timer output.
