規格描述

AIR-LOGIC壓力調節器R6000系列技術參數

Specifications
Series	R6000 Adjustable Precision Manifold Mount Regulator
Model Number	R6030 - 0.5 - 30 PSI
Adjustment Style	W/K - with adjustment knob
Adjustment Range	0.5 to 100 psi
Maximum Supply	150 psi
Operating Temperature	40 to 150 oF 4 to 66 oC
Recommended Filtration	5 μm
Effect of Supply Variation	Within .1 PSI output change with 10 PSI supply change
Flow Regulator	Maximum flow 5 SCFM with 100 PSI supply
Repeatability	Within .1 PSI when the supply pressure is turned off and on.
Drift	At 75 °F. 0.1 PSI total drift
Supply Consumption	Within 400 cc/m at 100 PSI supply, with a deadend output

產品介紹

愛澤工業（ize-industries）并不是本網站所列所有產品的授權代理商或經銷商。本網站使用的所有產品名稱，商標，品牌等均屬于各自品牌廠家所有。本網站在產品或圖片描述中，出現具有這些名稱，商標，品牌等信息的產品僅用于識別目的，并非旨在表明任何與持有者的從屬及授權關系。

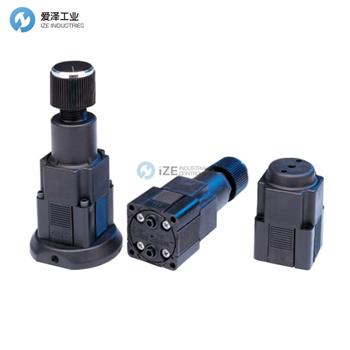

AIR-LOGIC壓力調節器產品介紹

The Manifold Mounted Precision Pressure Regulators are designed to mount directly on pneumatic circuit boards or manifold subplates. The port connections for the supply and output are located on the base of the manifold mounted series regulator. Two recessed Buna-N o-rings are supplied for sealing the regulator to the manifold.

The Manifold Mounted Regulators are available in two models: The Adjustable Precision Regulator has a 20-turn adjustment range from .5 to 100 PSI. Maximum supply is 150 PSI. Four adjustment ranges are available: 10 PSI, 30 PSI, 60 PSI, and 100 PSI.

The Adjustable Regulator is furnished with an adjustment knob and is also available with an extended 1/4" shaft to accept an adjusting knob or furnished with an exposed screwdriver adjustment by which the pressure range can be adjusted.

The Preset Precision Regulator is designed to produce a precise output pressure that is preset at the factory, 0.5 to 40 PSI using a 100 PSI supply.

The preset regulator is available with a recessed allen wrench adjustment or a removable adjustment knob.

The Unique Modular Dovetail design allows the regulator to be used individually or assembled into a modular combination of pneumatic components.

Features:

Manifold Mount

Modular Dovetail Design

Excellent Repeatability

Automatic Relief

Low Cost

歧管安裝式精密壓力調節器設計為直接安裝在氣動電路板或歧管底板上。供應和輸出的端口連接位于歧管安裝的串聯調節器的底座上。提供了兩個嵌入式 Buna-N O 形圈，用于將調節器密封到歧管上。

安裝在歧管上的調節器有兩種型號：可調精密調節器具有 0.5 至 100 PSI 的 20 圈調節范圍。最大供應量為 150 PSI。有四種調節范圍可供選擇：10 PSI、30 PSI、60 PSI 和 100 PSI。

可調式調節器配有一個調節旋鈕，也可配備一個加長的 1/4" 軸以接受調節旋鈕或配備一個暴露的螺絲刀調節器，通過它可以調節壓力范圍。

Preset Precision Regulator 旨在產生精確的輸出壓力，該壓力在工廠預設為 0.5 至 40 PSI，使用 100 PSI 供應。

預設調節器可使用嵌入式內六角扳手調節或可拆卸調節旋鈕。

獨特的模塊化燕尾設計允許調節器單獨使用或組裝成氣動元件的模塊化組合。

特征：

歧管安裝

模塊化燕尾設計

出色的重復性

自動泄壓

低成本

AIR-LOGIC壓力調節器R6000系列其他常用型號：

AIR-LOGIC R6010-BBBB-W/K

AIR-LOGIC R6010-BBBB-W/S

AIR-LOGIC R6010-BBBB-WO/S

AIR-LOGIC R6010-BBBB-W/K

AIR-LOGIC R6030-BBBB-W/S

AIR-LOGIC R6030-BBBB-WO/S

AIR-LOGIC R6060-BBBB-W/K

AIR-LOGIC R6060-BBBB-W/S

AIR-LOGIC R6060-BBBB-WO/S

AIR-LOGIC R6100-BBBB-W/K

AIR-LOGIC R6100-BBBB-W/S

AIR-LOGIC R6100-BBBB-WO/S

AIR-LOGIC MINIATURE PRECISION PRESSURE REGULATOR NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于AIR-LOGIC壓力調節器R6030-BBBB-W/K的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。

If you have any question for AIR-LOGIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.aalatcr.cn.

AIR-LOGIC壓力調節器R6030-BBBB-W/K參數介紹
