規格描述

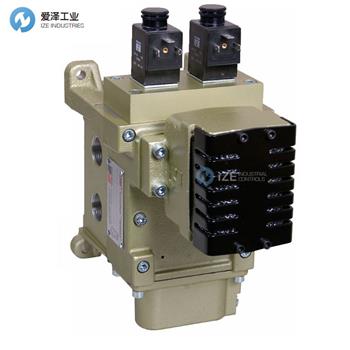

ROSS閥DM2DXA5XA2X技術參數

Code	DM2DXA5XA2X
PRODUCT	DM2D
THREAD	X = N/A (no base)
REVISION LEVEL	A = Size 4, 8, 12, 30
BASIC SIZE	5 = 8
BASE PORT SIZE	X = Valve only (less base)
VOLTAGE	A = 24 volts DC
RESET TYPE	2 = SOLENOID
STATUS INDICATOR	X = NO

產品介紹

愛澤工業（ize-industries）并不是本網站所列所有產品的授權代理商或經銷商。本網站使用的所有產品名稱，商標，品牌等均屬于各自品牌廠家所有。本網站在產品或圖片描述中，出現具有這些名稱，商標，品牌等信息的產品僅用于識別目的，并非旨在表明任何與持有者的從屬及授權關系。

ROSS閥DM2D系列介紹

ROSS DM2? D系列雙閥具有兩個閥元件，由兩個電磁導閥獨立控制。兩個閥元件共享共同的入口、出口和排氣端口。當先導閥同時通電時，閥芯動作，使閥門作為 3/2 常閉閥發揮作用。

如果其中一個閥元件未與另一個閥元件同步打開或關閉，則閥門進入故障狀態，排出下游空氣并將殘余出口壓力保持在小于入口供應的 1%。這是 ROSS DM2? D 系列設計的一個重要安全特性。閥元件冗余提供了一個額外的安全系數，因為在同一循環中兩個閥元件發生故障的可能性被認為是極小的。 DM2? 閥還有一個集成到閥元件中的內部監視器。如果閥門運行異常，監控器將鎖定閥門并防止進一步運行，直到采取糾正措施為止。

A ROSS DM2? Series D double valve has two valve elements independently controlled by two solenoid pilots. The two valve elements share common inlet, outlet, and exhaust ports. When the pilot valves are simultaneously energized, the valve elements operate so that the valve functions as a 3/2 normally closed valve.

If one of the valve elements does not open or close synchronously with the other, the valve goes into a faulted condition, exhausts downstream air and keeps residual outlet pressure to less than 1% of inlet supply. This is an important safety characteristic of the ROSS DM2? Series D design. Valve element redundancy provides an additional safety factor, as the likelihood of a malfunction in both valve elements in the same cycle is considered extremely remote. DM2? valves also have an internal monitor that is integrated into the valve elements. Should the valve operate abnormally, the monitor will lock-out the valve and prevent further operation until corrective action is taken.

ROSS閥DM2D系列選型

ROSS閥DM2D系列其他常用型號：

ROSS DM2DXA5XA2X

ROSS DM2DDA54B2X

ROSS DM2DDA54B4X

ROSS DM2DDA54B41

ROSS DM2DDA67B41

ROSS DM2DNA54A1X

ROSS DM2DNA54A21

ROSS DM2DNA54A2X

ROSS DM2DNA54A41

ROSS DM2DNA54A4X

ROSS DM2DNA54B11

ROSS DM2DNA54B1X

ROSS DM2DNA54B2X

ROSS DM2DNA54B41

ROSS DM2DNA54B4X

ROSS DM2DDB20A41

ROSS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于ROSS閥DM2DXA5XA2X的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.aalatcr.cn.

ROSS閥DM2D系列DM2DXA5XA2X技術參數及選型
