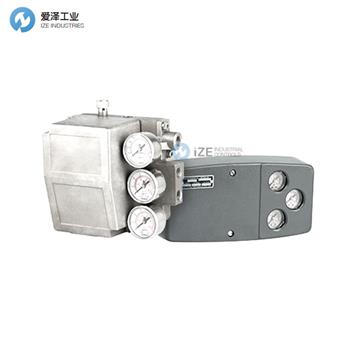

R.K.CONTROL閥門定位器VP系列技術參數
Inlet Pressure: | Upto 10 Kg / cm2 (150 psig) |
Outlet Pressure : | 0 to 120 psig with spring ranges of 0 to 30 psig, 0 to 60 psig to 0 to 120 psig |
End connection : | Inlet / Outlet / Gauge : 1/4″ NPT (F) |
Filter Element : | ABS plastic, 25 microns and 5 microns option Stainless steel option available |
R.K.CONTROL閥門定位器VP系列產品介紹
控制器信號（通常為0.2到1 kg/cm的氣動信號）施加到波紋管上。當該信號壓力增加時，波紋管傾向于旋轉杠桿臂。這一運動使得先導繼電器（直接作用式先導）增加定位器的輸出壓力。該輸出壓力反饋到執行器，從而推動閥桿。閥桿的運動通過機械聯動反饋到力平衡彈簧上，導致其加載或卸載，直到杠桿臂上的彈簧張力平衡波紋管的作用力。當這兩種力量平衡時，系統處于平衡狀態，先導通過控制輸出壓力來維持平衡。
特點：
排氣
更高的容量和更低的下泌
壓力調節和泄壓部分均采用軟座結構
鋁或不銹鋼材料選項
結構堅固，耐腐蝕
可根據不同應用提供過濾器尺寸選項
經濟設計，移動部件最少
優越的調節特性
出色的穩定性和重復性
供給壓力變化的影響可忽略不計
適用于控制閥和動力缸
The controller signal (usually 0.2 to 1 kg/cm pneumatic signal) is applied to the bellows. When this signal pressure increases, the bellows tend to rotate the bellcrank lever. This movement causes the pilot relay (direct action pilot) to increase the positioner output pressure. This output pressure fed to the actuator, consequently moves the valve stem. The valve stem motion is fedback through mechanical linkages to the force balance spring, loading or unloading it until the spring tension on the bellcrank lever balances the operating force of the bellow. When these two forces are in balance the system is in equlibrium, with the pilot throtting the output pressure to maintain equilibrium.
Features:
Self-relieving
Higher capacity and lower droop
Soft seat construction in both the pressure reducing and relief section
Aluminium or Stainless Steel Material option
Rugged, corrosion – resistant construction
Filter size options available to suit different applications
Economic design with minimum moving parts
Superior regulation characteristics
Excellent stability and repeatability
Effect of supply pressure variation is negligible
Ideal for control valves and power cylinders
R.K.CONTROL其他常用型號：
R.K.CONTROL VP0L1A1SDPS
R.K.CONTROL VP5
R.K.CONTROL VP5-SS
R.K.CONTROL VB3000
R.K.CONTROL VB1000
R.K.CONTROL Valve Positioner NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于R.K.CONTROL閥門定位器VP0L1A1SDPS的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for R.K.CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
R.K.CONTROL閥門定位器VP系列VP0L1A1SDPS產品介紹
