規格描述

FLOWSERVE氣動執行器S系列技術參數

Operating Conditions
Pressure Limitation	10 bar maximum working pressure
Media	Air or non-corrosive fluid. The media should have a dew point at least 10°C below the ambient operating temperature.
Temperature Range	Standard -20°C to +80°C Low temperature variant -50°C to +80°C High temperature variant -20°C to +150°C
Rotation (viewed from top)	Pinion rotates anti-clockwise when the centre chamber supply port (RHS) is pressurised. Reverse acting options available.
Travel (all sizes)	Average 100° total travel to provide nominal 5° over travel clockwise and anti clockwise.SN250/SN300 models - travel stops in outward direction only.
Extended Travel	180°, 140°, 120°. For further options consult your local Flowserve sales operation.
Adjustable Travel Stop	Standard on all 90° versions. Optional on 140°. Open adjustment only on 180°.

產品介紹

愛澤工業（ize-industries）并不是本網站所列所有產品的授權代理商或經銷商。本網站使用的所有產品名稱，商標，品牌等均屬于各自品牌廠家所有。本網站在產品或圖片描述中，出現具有這些名稱，商標，品牌等信息的產品僅用于識別目的，并非旨在表明任何與持有者的從屬及授權關系。

FLOWSERVE氣動執行器S系列特點及選型

主要特點

鋁合金主體，內部和外部均經過陽極氧化處理。

端蓋，采用超厚環氧涂層進行烤箱處理。

全域可逆，用于更改彈簧故障模式。

接觸面較寬的活塞導向軸承，可提高效率和循環壽命。

如果需要有限的調節或有限的旋轉，則必須進行獨立的打開和關閉調節（S050-S200的標準配置）。

工作溫度范圍為-50°C至+ 150°C。標準-20°C至+ 80°C。

獨特的設計還允許使用非潤滑空氣進行操作。

可現場維護，無需任何特殊工具。

MAIN FEATURES

Aluminium alloy body, internally and externally hard anodised.

End caps, oven-treated with ultra-thick epoxy coating.

Fully field reversible for altering spring failure mode.

Piston guide bearings with wide contact surfaces,increased efficiency and cycle life.

Independent open and closed adjustment (standard across S050-S200) is indispensable where finite adjustment or limited rotation is required.

Working temperatures to cover from -50°C to +150°C.Standard -20°C to +80°C.

The unique design also allows for operation with non-lubricated air.

Maintanable on site without the need for any special tools.

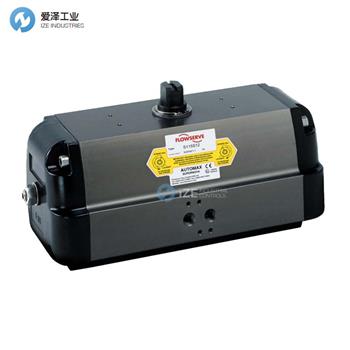

FLOWSERVE氣動執行器S100D 愛澤工業ize-industries (1).png

FLOWSERVE氣動執行器S系列其他常用型號：

FLOWSERVE S050D

FLOWSERVE S063D

FLOWSERVE S085D

FLOWSERVE S100D

FLOWSERVE S115D

FLOWSERVE S125D

FLOWSERVE S150D

FLOWSERVE S175D

FLOWSERVE S200D

FLOWSERVE SN250D

FLOWSERVE SN300D

FLOWSERVE Pneumatic actuators NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于FLOWSERVE氣動執行器S100D的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for FLOWSERVE products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.

FLOWSERVE氣動執行器S系列S100D介紹及選型
