DUPLOMATIC閥QTM5系列技術參數
PERFORMANCES | ||
Maximum operating pressure | bar | 350 |
Maximum flow rate | l/min | 120 |
Cracking pressure | bar | 0,5 |
Ambient temperature range | ℃ | -20/+60 |
Fluid temperature range | ℃ | -20/+80 |
Fluid viscosity range | cSt | 10 ÷ 400 |
Recommended viscosity | cSt | 25 |
Fluid contamination degree | According to ISO 4406:1999 class 20/18/15 | |
Mass: QTM5-SA, -SB, -RSA, -RSB | kg | 2,3 |

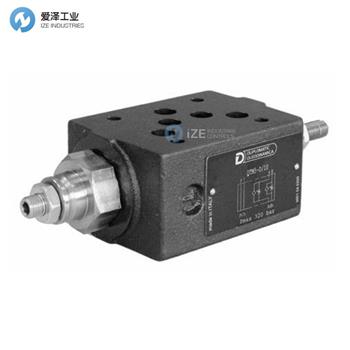

DUPLOMATIC閥QTM5系列介紹
這是一種流量限制閥，內置止回閥，用于逆向自由流動，是按照ISO 4401標準安裝表面的模塊化形式。
可在所有ISO 4401-05模塊化閥下快速組裝，而無需使用管道，使用合適的拉桿或螺栓，從而形成緊湊的模塊化組。
隨附內六角調節螺絲和鎖緊螺母。 逆時針旋轉以增加流速。
This is a flow restrictor valve with built in check valve for reverse free flow, made as a modular version with mounting surface according to the ISO 4401?standards.
It can be assembled quickly under all ISO 4401-05 modular valves without use of pipes, using suitable tierods or bolts, thus forming compact modular groups.
It is supplied with socket hex adjustment screw and locking nut. Rotate anticlockwise to increase the flow rate.

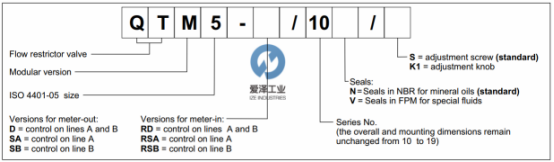

DUPLOMATIC閥QTM5系列選型
DUPLOMATIC閥QTM5系列其他常用型號：
DUPLOMATIC QTM5-D/10N-K1
DUPLOMATIC QTM5-D/10N/S
DUPLOMATIC QTM5-SA/10N/K1
DUPLOMATIC QTM5-RSB/10N/S
DUPLOMATIC QTM5-RSA/10N/S
DUPLOMATIC QTM5-RD/10N/S
DUPLOMATIC valves pilot operated NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUPLOMATIC閥QTM5-D/10N-K1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUPLOMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.aalatcr.cn.
DUPLOMATIC閥QTM5系列QTM5-D/10N-K1介紹及選型
