SUCO壓力開關0111-41903-1-011規格
Technical data | |

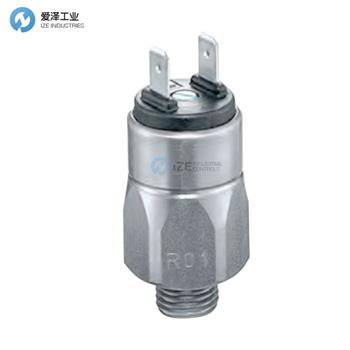

Piston pressure switch, 0111 - Deutsch DT04 - 2P (50 - 150 bar) | |
Order number | 0111-41903-1-011 |
Pressure range | 50 to 150 bar (+/- 5) |
Overpressure safety | 600 bar |
Pressure type | Overpressure |
Adjustable switching point | Yes |
Hysteresis | Average value of 5 - 30 %, depending on type, not adjustable |
Switch function | Normally open (NO) |
Electr. connection | AMP Superseal 1.5 |
integrated | Yes |
IP Rating | IP67; IP6K9K |
Contact rating | 42 VAC |
Contact material | Silver |
Sealing material | NBR |
Housing material | Zinc-plated steel (CrVl-free) |
Connection | G 1/4 |
Additional functions | none |
SUCO壓力開關產品介紹
The all-rounder with the broad selection of options
Large selection of electrical plug-in types for quick attachment and reliable connection
High protection class (to IP67 or IP6K9K)
Compact and rugged design in industrial environments like construction and agricultural machinery or commercial vehicles
Switching point can be set on site with adjusting screw in the connector
High overpressure resistance, compact, small switches, available as normally open or normally closed
全面的選擇范圍廣泛
多種電氣插件類型，可實現快速連接和可靠連接
高防護等級（達到IP67或IP6K9K）
在工業環境中（如建筑，農業機械或商用車輛）的緊湊而堅固的設計
可以使用連接器中的調節螺釘在現場設置開關點
高耐超壓，緊湊，小開關，常開或常閉
SUCO壓力開關其他型號：
SUCO 0340-45803-1-006 1.0-10.0bar
SUCO 0159-43414-1-001 40-400 bar
SUCO 0166-41203-1-047
SUCO 0166-40403-1-015 0.1-1.0 bar
SUCO 0171-46003-1-003 110bar
SUCO 0180-45703-1-003 805703 101W71
SUCO 0184-45703-1-003 845703
SUCO 1-1-66-621-010
SUCO 0111-41903-1-011
SUCO 0166-40702-1-026
SUCO Pressure Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SUCO壓力開關0111-41903-1-011的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for SUCO products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.
SUCO 壓力開關0111-41903-1-011選型及介紹
