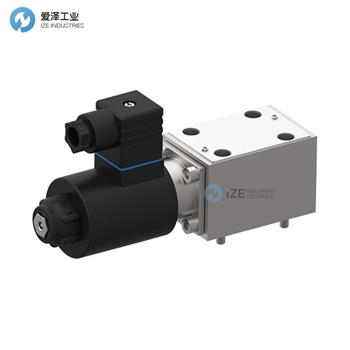

BUCHER閥W2N32SN-6BB2描述
說明
W2：電磁換向座閥，帶集總排布
N：開式交叉（標準配置）
32 S：3/2 功能，P端關閉
N：無推入式止回閥或節流孔（標準配置）
6：ISO尺寸03接口
B：標準型號，參見相關技術資料
B：帶手動手柄
2：設計編號座閥（訂購新設備時省略）
W2 = solenoid directional seat valve, manifold mtg
N = open crossover (standard)
32 S = 3/2 function, P closed
N = without push-in check valve or orifice (standard)
6 = ISO size 03 interface
B = standard model - see relevant data Sheets
B = with manual override
2 = design number, seat vlave (omit when ordering new units)
BUCHER閥W2系列產品描述
描述
W2N… / W2P… 系列的2/2至4/4電磁換向座閥為直接作用的集成安裝閥，接口尺寸為ISO 4401-03-02（尺寸03）。閥門的主要組成部分包括集成安裝體和推入式的2/2或3/2換向座閥芯（類型W1…）。根據運行位置，端口要么幾乎無泄漏地閉合，要么開啟，允許氣流雙向流動。
“疊加”型號（W2P…）具有封閉的交叉特性，在換向期間端口之間沒有連接，僅會發生極小的流量/壓力損失。
這些電磁座閥可以選配手動手柄或無手動操作，同時也可選配手柄桿。在需要在P端加裝止回閥或節流孔的應用中，可以作為選項安裝相關功能。
該系列閥主要用于某些移動和工業領域，尤其在需要密封關閉功能至關重要的場合，例如必須保持負載、張力或夾緊力而不泄漏的應用。
集成安裝體經過磷化處理，所有外部部件（閥芯）采用DIN EN ISO 19598規范的鎳鋅鍍層，適合惡劣工況環境。
帶滑入式線圈可無需打開液壓系統罩蓋進行更換，并且線圈可以以任何角度（360°）定位。
Description
The W2N… / W2P… series of 2/2 … 4/4 solenoid operated directional seat valves are direct acting manifold-mounting valves with a size 03 interface to ISO 4401-03-02. The main components of the valves are a manifold-mounting body
and the push-in 2/2 or 3/2 directional seat valve cartridge (type W1…). Dependent on the operating position, the ports
are either closed with virtually zero leakage, or open and flow is possible in either direction. The “overlapped” model (W2P…) features a closed crossover characteristic i.e. during the valve's switching period, there is no Connection between the ports and therefore only a minimal loss of flow/ pressure occurs. These solenoid operated seat valves are also available with or without manual override, and with the option of an additional hand lever. For applications where a check valve or an orifice in the P port is necessary, either of these features can be included as an option. These solenoid operated seat valves are predominantly used in certain mobile and industrial applications where leak-tight shut-off functions are crucially important. Examples are where loads, tensions, or clamping forces must be held without leakage. The manifold-mounting body is phosphated. All external parts of the cartridge are zinc-nickel plated according to DIN EN ISO 19 598 and are thus suitable for use in the harshest operating environments. The slip-on Coils can be replaced without opening the hydraulic envelope and can be positioned at any angle through 360°.
BUCHER閥W2系列常用閥型號：
BUCHER W2N32SN-6BB2
BUCHER W2N32SN-6AB2
BUCHER W2N32SN-6BB2
BUCHER W2N32SN-6AB3
BUCHER W2N32SN-6BB1
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BUCHER閥W2N32SN-6BB2的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:www.aalatcr.cn.
BUCHER閥W2N32SN-6BB2產品描述
