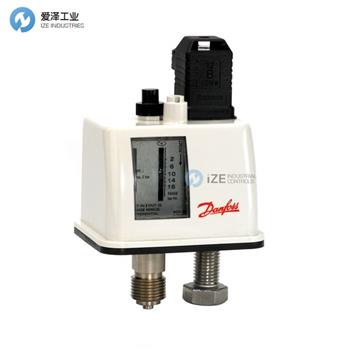

DANFOSS壓力開關017B0038技術參數
Product details | |
Gross weight | 0.61 Kilogram |
Net weight | 0.496 Kilogram |
Volume | 1.736 Liter |
Type | BCP3H |
Product group | Switches and thermostats |
Product Name Description | Pressure switch |
Ambient temperature range [°C] [max] | 70 °C |
Ambient temperature range [°C] [min] | -20 °C |
Ambient temperature range [°F] [max] | 158 °F |
Ambient temperature range [°F] [min] | -4 °F |
Approval | CE |
Burst pressure [bar] | 24 bar |
CE evaluated | Yes |
China RoHS compliance | Out of scope |
Contact function | SPDT gold |
Contact load type | A |
Contact rating | AC15=1 A, 250 V |
Contains batteries | No |
Differential [bar] | 0.4 bar |
Differential [psi] | 5.8 psi |
EEE category | 5 small equipment (any external dimension < 50 cm) |
Electrical conn. Male/Female | Female |
Electrical connection | DIN-plug |
Electrical connection size | Pg 11 |
Electrical connection standard | EN 175301-803 |
Electrical spec. standard | EN 60947-4/-5 |
Enclosure rating IP | IP65 |
EU RoHS compliance | Yes |
EU RoHS exemption clause | No |
Fluid Group | 1 |
In scope of WEEE | Yes |
Max. test pressure [bar] Pe | 17.6 bar |
Max. test pressure [psig] | 255 psig |
Max. Working Pressure [bar] | 16 bar |
Max. Working Pressure [psig] | 230 psig |
Packing format | Multi pack |
PED category | IV |
Pressure connection size | 1/2 |
Pressure connection standard | ISO 228-1 |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure sensing element | Bellows |
Product accessories | Switches accessories |
Product description | Pressure Switch |
Quantity per packing format | 9 pc |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Regulation range [bar] Pe [max] | 6 bar |
Regulation range [bar] Pe [min] | 0 bar |
Regulation range [psig] Pe [max] | 87.02 psig |
Regulation range [psig] Pe [min] | 0 psig |
Reset function | Manual Max |
SCIP dossier product name | BCP |
Serviceable | No |
DANFOSS壓力開關介紹
調節范圍 [bar] Pe:0 - 6,差壓 [bar]:0.4,復位功能:手動最大,壓力接口類型:G,壓力接口尺寸:1/2,防護等級 IP:IP65,最大工作壓力 [bar]:16
Regulation range [bar] Pe: 0 - 6, Differential [bar]: 0.4, Reset function: Manual Max, Pressure connection type: G, Pressure connection size: 1/2, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 16
