SIT閥230系列技術參數
Technical Data | |
Body Material | Brass (Ms 58), 1.4305 (V2A), 1.4571 (V4A) |
Internal Parts Material | 1.4104/1.4305 |
Static Seal Material | FPM (Viton) |
Dynamic Seal Material | FPM (Viton) |
Mounting Position | Required (Upright is preferred) |
Switching Frequency | 240/min (with air) |
Electrical Data | |
Connection voltage | 24 V DC |
230 V 50/60 Hz | |
Power consumption | 18 W DC |
AC power supply | 26 VA |
Power output | 14 VA |
Electrical connection lugs | 2-pole + ground |
Connection via appliance socket | |
Temperature class E (90°C) in accordance with VDE580 | |
Duty cycle | 100% ED |
Voltage tolerance | ±10% |
Frequency tolerance | ±5% |
Process connection thread G1/8 - G1/2 | |
Nominal diameter | 0.8 - 8 mm |
Pressure range | 0 – 70 bar |
Temperature class | E 80°C |
Current consumption | 750 mA |
Threaded connection, flange, block design | |
No differential pressure required | |
Protection class IP00 (with device socket IP65 EN 60529) | |
Coil conforms to DIN EN 173301-803 (formerly DIN 43 650) | |
SIT閥233系列介紹
2/2 通閥桿（231 系列法蘭閥門）
工藝連接 G：G1/8 – G1/4（可根據要求提供其他連接和歧管上的更多閥門）
2/2-Way Stem (231 Series Flanged Valve)
Process Connection G: G1/8 – G1/4 (Other connections and additional valves on the manifold available upon request)
SIT閥230系列其他常用型號：
SIT 233.01.00069
SIT 230
SIT 231
SIT 232
SIT 233
SIT valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SIT閥233.01.00069的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SIT products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.

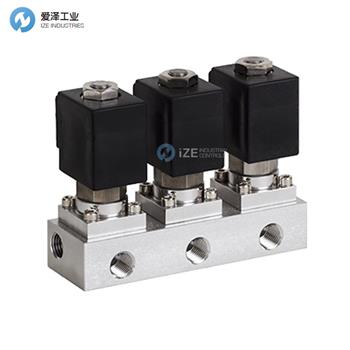

SIT閥233系列233.01.00069介紹
