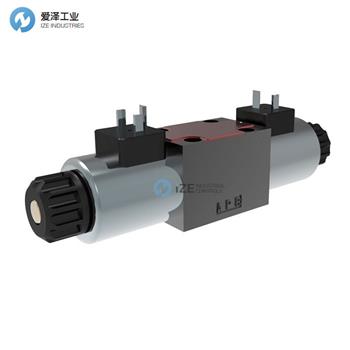

H+L電磁閥RPE3-063Y11/02400技術參數
Solenoid Operated Directional Control Valve | RPE3 |
Nominal size | 06 |
Number of operating positions | 3 three positions |
Functional symbols | Y11 |
Rated supply voltage of solenoids | 02400 24 V DC / 1.29 A |
H+L電磁閥介紹
4/2和4/3電磁操作方向控制閥
RPE3-06
尺寸 D 06 (03) ? 最大流量 80 升/分鐘 (21 加侖/分鐘) ? 最大壓力 350 巴 (5100 PSI)
直動式方向控制閥，帶有符合ISO 4401, DIN 24340 (CETOP 03)的底板安裝接口
高傳輸液壓功率高達350巴，優化設計以減少壓力損失
五腔殼體設計，降低液壓功率對流體粘度的依賴
閥門配有可互換的直流電磁鐵，也可用于采用內置整流橋的交流電源
提供多種電磁閥電氣端子版本
提供多種可互換滑閥和手動超控選項
可根據要求提供CSA認證
無接觸常開和常閉滑閥位置傳感器選項
軟啟動滑閥速度控制選項
線圈通過緊固螺母固定在核心管上，可以旋轉360°以適應可用空間
在標準版本中，閥體經過磷化處理以提供基本的表面防腐保護，并作為涂裝準備。鋼部件經過鍍鋅處理，符合ISO 9227標準，具備240小時鹽霧保護
可為流動行業提供增強的閥體和鋼部件表面保護（ISO 9227，520小時鹽霧）
4/2 and 4/3 Directional Control Valve, Solenoid Operated
RPE3-06
Size D 06 (03) ? Qmax 80 l/min (21 GPM) ? pmax 350 bar (5100 PSI)
Direct acting, directional control valve with subplate mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03)
High transmitted hydraulic power up to 350 bar with optimized design to minimize pressure drop
Five chamber housing design with reduced hydraulic power dependence on fluid viscosity
The valve is available with interchangeable DC solenoids, also for AC power supply using a built-in rectifier bridge
Wide range of solenoid electrical terminal versions available
Wide range of interchangeable spools and manual overrides available
CSA Certificate upon request
Inductive contactless Normally Open and Normally Closed spool position sensor option
Soft-shift spool speed control option
The coil is fastened to the core tube with a retaining nut and can be rotated by 360° to suit the available space
In the standard version, the valve housing is phosphated for basic surface corrosion protection and as preparation for painting. Steel parts are zinc-coated for 240 h salt spray protection acc. to ISO 9227
Enhanced surface protection for mobile sector available for the valve housing and steel parts (ISO 9227, 520 h salt spray)
H+L電磁閥其他常用型號：
H+L RPE3-063Y11/02400
H+L RPE3-062Z11/01200E1
H+L RPE3-063Z11/01200E1
H+L RPE3-062Z51/01200E1
H+L RPE3-063C11/01200E1
H+L RPE3-062C51/01200E1
H+L RPE3-063H11/01200E1
H+L RPE3-063Y11/01200E1
H+L RPE3-062R11/01200E1
H+L RPE3-062R21/01200E1
H+L RPE3-062A51/01200E1
H+L RPE3-062Y51/01200E1
H+L RPE3-062J15/01200E1
H+L RPE3-062Z11/02400E1
H+L RPE3-063Z11/02400E1
H+L RPE3-062Z51/02400E1
H+L RPE3-063C11/02400E1
H+L RPE3-062C51/02400E1
H+L RPE3-063H11/02400E1
H+L Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于H+L電磁閥RPE3-063Y11/02400的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for H+L products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.aalatcr.cn.
H+L電磁閥RPE3-063Y11/02400技術參數及選型
