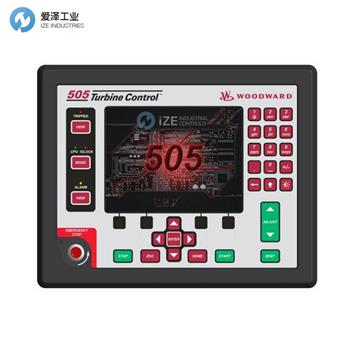

WOODWARD控制器8200-1301產品介紹
8200-1301 AC/DC (88–132 Vac or 90–150 Vdc) Standard Compliance
WOODWARD控制器8200-1301描述
The 8200-1301是Woodward 505數字調節器，專為分程范圍或單一執行器配用設計。該系列共有三款版本，其他兩款分別為8200-1300和8200-1302。8200-1301主要用于符合普通場所供電要求的交流/直流電源（88至264 V交流或90至150 V直流）。它支持現場編程，并采用菜單驅動軟件，用于機械驅動應用和/或發電機的控制。此調節器可以作為分布式控制系統（DCS）的一部分配置，也可以作為獨立單元使用。
8200-1301具有多種正常工作模式，包括配置模式、運行模式和維護模式。配置模式會將硬件鎖定在輸入輸出狀態，所有輸出處于非激活狀態，通常僅在首次配置設備時使用。運行模式支持從啟動到停機的正常操作。維護模式允許在設備關閉或正常運行時進行校準和調整。
8200-1301的前面板設計提供多級訪問權限，方便調節、操作、校準和配置渦輪機。所有渦輪控制功能都可以通過前面板完成，包括使用多種輸入按鈕的邏輯算法來控制、停止、啟動和保護渦輪機。
The 8200-1301 is a Woodward 505 Digital Governor designed to be used with split range or single actuators. This is one of three versions available in this series, the other two being the 8200-1300 and the 8200-1302. The 8200-1301 is primarily used for AC/DC (88 to 264 V AC or 90 to 150 V DC) ordinary location compliance power. It is field programmable and uses menu-driven software for the control of mechanical drive applications and/or generators. This governor can be configured as part of a DCS (distributed control system) or it can be designed as a standalone unit.
The 8200-1301 has several different normal operating modes. This includes a configuration mode, a run mode, and a service mode. The configuration mode will force hardware into the I/O lock and put all outputs into a state of being inactive. Configuration mode is typically only used during the original configuration of equipment. Run mode allows for normal operations from start-up to shut down. Service mode allows for calibration and adjustments either when the unit is shut down or during normal operation.
The front panel of the 8200-1301 is designed to offer multiple levels of access to allow for tuning, operating, calibration, and configuration of the turbine. All turbine control functions can be performed from the front panel. It includes logic algorithms to control, stop, start, and protect the turbine using a number of input buttons.
常用WOODWARD控制器型號：
WOODWARD 8200-1300
WOODWARD 8200-1301
WOODWARD 8200-1302
WOODWARD Control valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WOODWARD控制器8200-1301的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for WOODWARD products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.aalatcr.cn.
